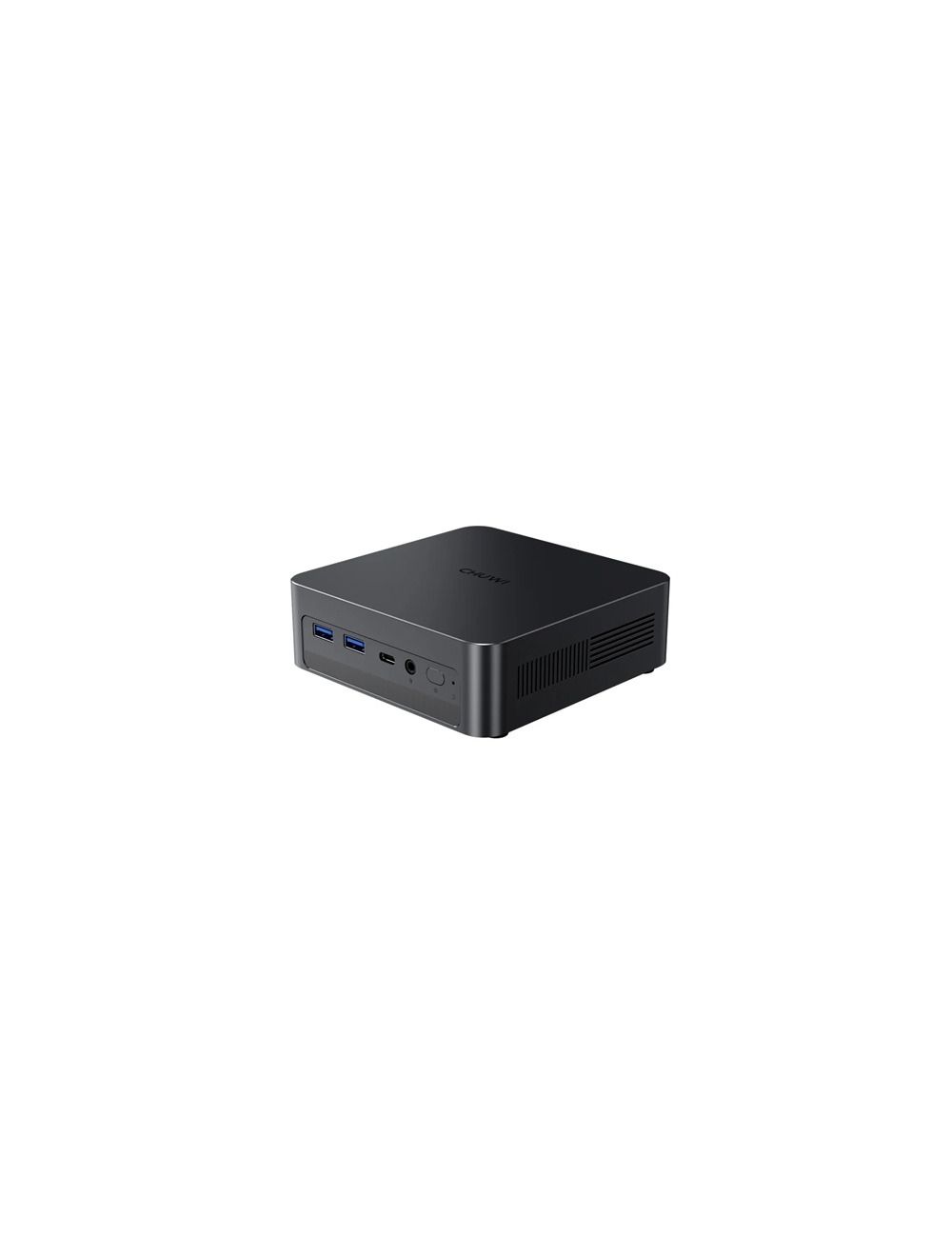

Chuwi AuBox X U5 226V Copilot+ PC

Chuwi AuBox X U5 mini pc | Intel Ultra 226V | 16GB memory | 512GB SSD | Windows 11 Pro

SKU
CW-AUBOX-X-U5-226V

Chuwi AuBox X U5

Quiet power, local AI, Future ready.

Features

  • Intel® Core™ Ultra 5 226V processor, delivering next-generation energy efficiency and cutting-edge AI processing capabilities. It ensures a fast, responsive experience for multitasking, gaming, AI experimentation, and content creation;
  • 8 cores, 8 threads, 8MB Intel Smart Cache;
  • Supports triple displays and up to 8K output (8K @ 60HZ of 4K @ 144 Hz);
  • Copilot+ PC AI experiences. Powered by Windows 11 Pro. Accelerated by the 40 TOPS NPU. The AuBox X with the Intel Core Ultra processor enables you to enjoy Windows Copilot+ PC AI capabilities, delivering faster workflows, smarter creativity tools, and seamless communication, all running locally;
  • Build your own AI-assistant. Automate tasks, control workflows, and interact with your system, all locally. The AuBox X is purpose-built to run OpenClaw with near‑zero latency;
  • 16 GB LPDDR5X 8533 MT/s on-chip memory, 512 GB PCle 3.0 SSD storage, two M.2 2280 SSD-slots (up to 1x PCle 5.0 SSD + 1x PCle 4.0 SSD);
  • Quiet cooling, full performance. The AuBox X's advanced thermal design keeps the 37W TDP running at full speed, so you can render video, train AI models, or compile code for hours without slowdowns;
  • Low latency, high bandwidth. Stable connections for work, streaming, and large file transfers with WiFi 6E and 2.5G LAN;
  • Ultra-compact design, light weight. Place it behind a monitor, on a shelf or in your bag, it simply fits (VESA-mount included);
  • Built-in Arc Graphics. Enjoy smooth 4K playback, faster rendering, and crisp visuals with Intel® Arc™ 130V. Need desktop-class graphics for AAA gaming or professional 3D rendering? Connect an external GPU via USB4 and unlock uncompromised power when you need it;
  • Future-proof connectivity:

More Information
SKU CW-AUBOX-X-U5-226V
Brand Chuwi
EANcode 6935768761129
Chuwi AuBox X U5 226V
CPU Intel Core Ultra 5 226V (Lunar Lake) processor
(8 cores, 8 threads, up to 4.5 GHz, up to 37W TDP, TSMC N3B 3nm process)
GPU Intel Arc 130V GPU
1.85 GHz Max Dynamic frequency
NPU Intel AI Boost NPU
Overall TOPS: up to 97 TOPS
NPU TOPS: up to 40 TOPS
Memory 16GB LPDDR5X 8533 MT/s RAM (memory on package)
Storage 512GB PCle 3.0 SSD
(2x M.2 2280 SSD slots, expandable up to 1x PCle 5.0x4 + 1x PCle 4.0x2)
Operating system Windows 11 Pro

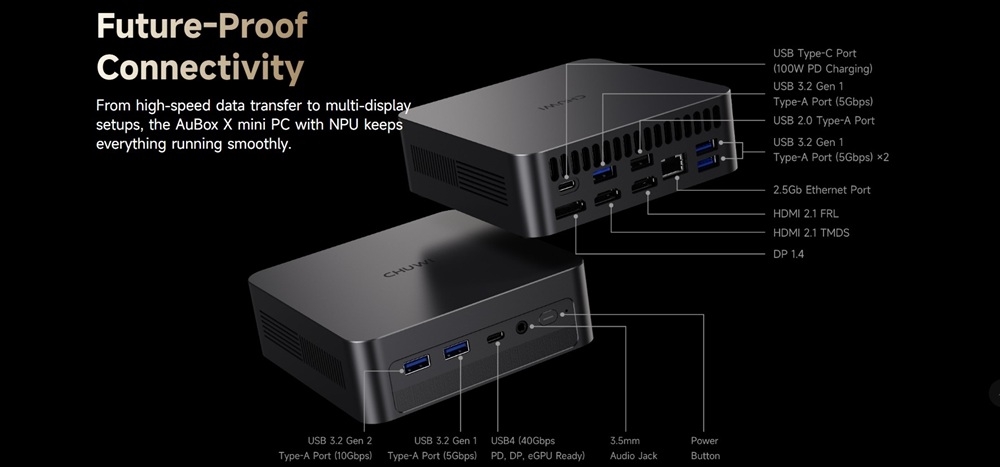

I/O Ports 1x USB4 port (40Gbps datatransfer, PD, DP video-output, eGPU ready)
1x USB 3.2 Gen 2 Type-A port (10 Gbps)
4× USB 3.2 Gen 1 Type-A ports (5 Gbps)
1x USB 2.0 Type-A port (480 Mbps)
1× HDMI 2.1 FRL port
1x HDMI 2.1 TMDS port
1x DisplayPort 1.4 port
1× 3.5mm audio jack
1× USB-C charging port (100W PD)
1x 2.5 Gb ethernet port
Display support Supports up to three external displays simultaneously (first-connected, first-displayed):
USB 4: up to 4K @ 144Hz;
DisplayPort 1.4: up to 4K @ 120Hz;
HDMI 2.1 (FRL): up to 8K @ 60Hz of 4K @ 120Hz;
HDMI 2.1 (TMDS): up to 4K @ 60Hz
Wireless connectivity WiFi 6E, Bluetooth 5.4
Ethernet Supports 2.5 Gbps
VESA-mount Included
Power adapter 100W USB-C PD power adapter
Size 128.4 x 128.4 x 40.5 mm
Weight About 580g
