Reolink D340P, smart 2k+ PoE video doorbell with chime
PoE doorbell with chime, 2k+ 5MP HD video, person detection
SKU
D340P
Slimme PoE deurbel D340P
- 2K+ 5MP (2560x1920) resolution, incredible clarity
- Power over Ethernet - Reliable connection & easy installation. Only one wire to get stable network and non-stop powering at the same time
- Person and package detectione, reduce false alarms
- You can also set a motion zone to black out areas prone to unnecessary alarms
- High quality night recording videos due to built-in infrared LED
- Wide-range monitoring (180° diagonal)
- Built-in mic & speaker, greet visitor or deter unwanted visitor, talk live with visiting friends when you're not at home
- Record before action: The doorbell camera will start recording before actual detections happen. 6-second color video footage prior to the alert
- Preset your voice messages and have the doorbell speak for you. You can also set automatic responses for times when you're completely occupied

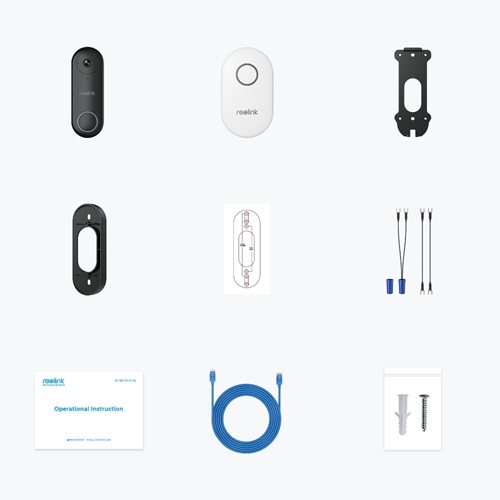

- One chime is included for Reolink Video Doorbell. Just plug it into any electrical socket at any room and be confidently alerted when visitors knock
- Flexible storage options: Save recordings locally to MicroSD card (up to 256GB) or Reolink NVR
- IP65 weatherproof design
- Free Reolink app or Client. Real-time notifications, live-view from anywhere, easy and smart playback
- Works with Google Assistant
SKU | D340P |
---|---|
Brand | Reolink |
EANcode | 6975253983308 |
Model: Reolink D340P | ||
Video & Audio | Sensor | 1/2.7" CMOS Sensor |
Resolution | 2560x1920 (5 Megapixel) @20 frames/sec | |
Lens | f=2.26mm; F=2.0, with IR Cut | |
Field of view | Horizontal: 134°, Vertical: 97° Diagonal: 180° | |
Pre-motion recording | √ | |
Audio | Two-way audio, noise reduction, echo suppression | |
Quick replies | √ | |
Video format | H.264 | |
SPower | PoE | IEEE 802.3af, 48V Active |
Hardwired | 12-24VAC 50/60Hz, DC24V | |
Interface | Power | DC power port |
Ethernet | One 10M/100Mbps RJ45 | |
Storage | MicroSD card slot (up to 256GB), Reolink NVR | |
System | Reset button | |
Audio | Built-in microphone (2) & speaker | |
Software | Frame rate | Mainstream: 2fps - 20fps (default: 20fps) Substream: 4fps - 15fps (default: 10fps) |
Code rate | Mainstream: 1024Kbps - 6144Kbps (default: 4096Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|
Network protocol | HTTPS, IPv4, UPNP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
Browser supported | Edge, Chrome, Firefox, Safari | |
OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
Recording modes | Motion recording (default), scheduled recording | |
Smart Alarm | Motion detection/Human detection/visitor detecton | |
Works with | Google Assistant | |
General | Working environment | Operating temperature -10° ~ 55° C; Operating humidity 10%~90% |
Waterproof | IP65 | |
Dimension | 133 (H) x 48 (B) x 23 (D) mm | |
Weight | 96 g | |
Warranty | Limited warranty | 2-year limited warranty. Visit Reolink Support - Official Reolink Help Center |
Or download @ Datasheets Reolink camera's
1. Lens
2. Bel
3. Deurbel status lampje
4. Gong status lampje
