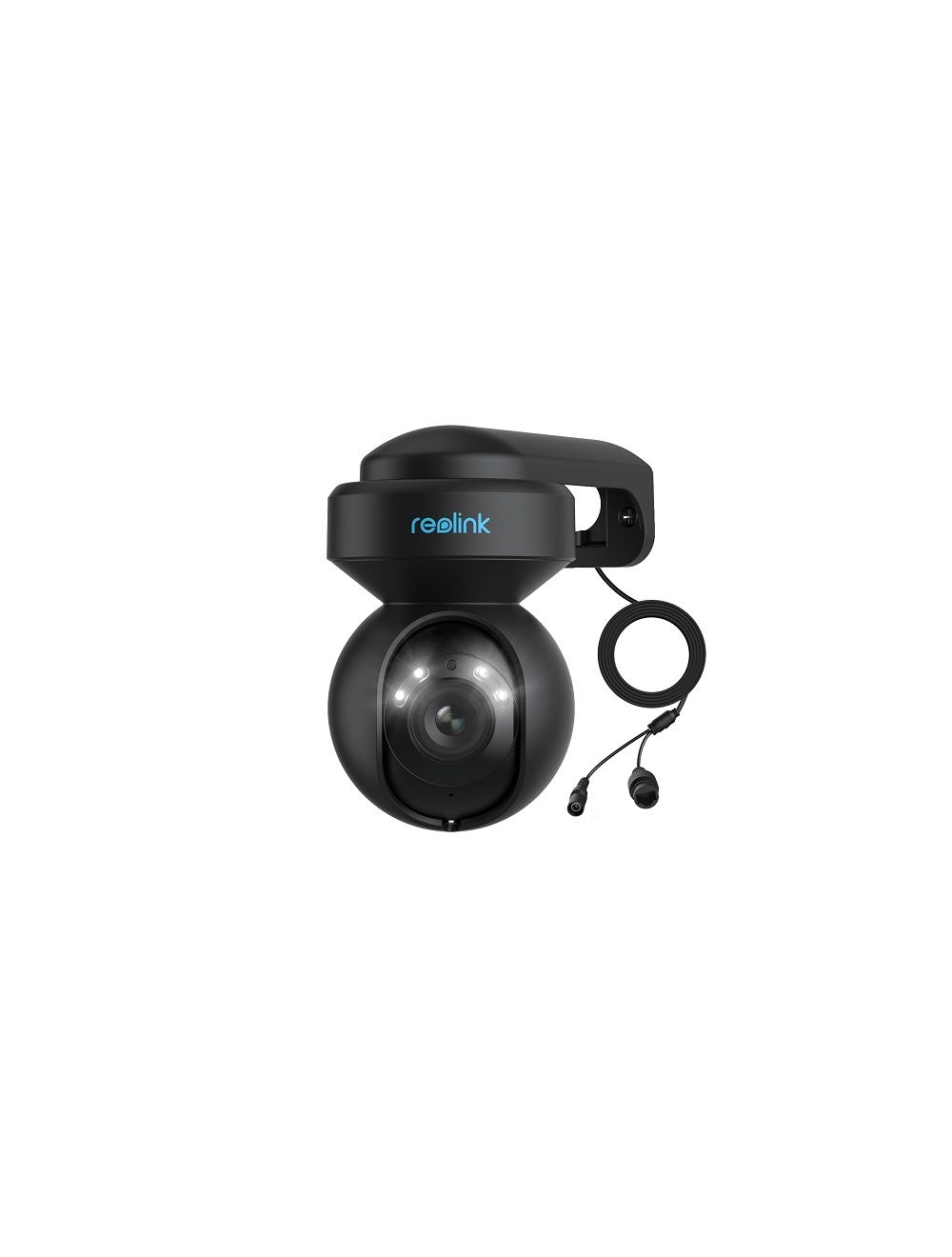

Reolink E1 Outdoor, smart 5MP PTZ Dual-Band WiFi camera with spotlights (black)
This model is no longer available. The successor is Reolink E540.
SKU
REOLINK-E1-OUTDOOR-B
Related Products
This model is no longer available. The successor is Reolink E540.
Reolink E1 Outdoor
- 5MP Super HD PTZ camera with 3x optical zoom
- New smart detection tech. With the on-camera technology of analyzing person and vehicle shapes, E1 Outdoor offers accurate detections, greatly reducing false alarms on trivial objects’ movements
- 355° pan & 50° tilt, rotates to overview the whole
- Dual-Band WiFi (2.4/5 GHz), freely switch between frequency bands
- Two-way audio. Built-in microphone and speaker, listen and talk back
- The camera’s spotlights and siren will be triggered or manually activated to warn off the would-be criminal once he/she is detected
- Color night vision. See full color images with spotlights on
- Time lapse videos (feature is incompatible when camera is connected to NVR)
- Remote access and control on Reolink App or Client
- Up to 256GB micro SD card (optional). Larger storage capacity means longer or more recordings
- Certified weatherproof
| SKU | REOLINK-E1-OUTDOOR-B |
|---|---|
| Brand | Reolink |
| EANcode | 6975253984893 |
| Model: Reolink E1 Outdoor | ||
| Video & Audio | Sensor | 1/2.7" CMOS Sensor |
| Video Resolution | 2560x1920 (5MP) @20 frames/sec | |
| Video format | H.264 | |
| Lens | f=2.8~8 mm, F=1.6, with IR cut | |
| Zoom | 3x optical zoom | |
| Filed of View | Horizontal 48~90°, vertical 37~68° | |
| Pan/Tilt angle | Horizontal 355°, vertical 50° | |
| Infrared night vision | Up to 12 meters (LED: 12st/14mil/850nm) | |
| Color night vision | Up to 12 meters (LED: 4st/2.7W/6500K) | |
| Day/night | IR-cut filter with auto-switching | |
| Audio | Two-way audio | |
| Interface | Power | DC power port |
| System | Reset button | |
| Ethernet | One 10M/100Mbps RJ45 | |
| Storage | Micro SD card slot (max 256GB) | |
| Audio | Built-in microphone and speaker | |
| WiFi | Wireless standard | IEEE 802.11 a/b/g/n |
| Frequency | 2.4/5 GHz | |
| Wireless security | WPA-PSK/WPA2-PSK | |
| Power | DC power | 12.0/1A, <12W |
| Software features |
Frame rate | Mainstream: 2fps - 25fps (default: 20fps); Substream: 4fps - 15fps (default: 10fps) |
| Code rate | Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|
| Browser | IE, Edge, Chrome, Firefox, Safari | |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Smart alarm | Motion detection/person detection/vehicle detection | |
| Record modes | Motion recording (default)/scheduled recording | |
| Protocols & Standards | HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P | |
| Max user access | Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams); 20 users (1 admin account & 19 user accounts) |
|
| Works with | Google Assistant | |
| Working environment | Operating temperature | -10° to 55° C |
| Operating Humidity | 20~85% | |
| Waterproof | √ | |
| Dimension & Weight | Dimension | Φ85x118 mm |
| Weight | 380g | |
| Warranty | Limited | 2-year limited warranty |
Or download specs: Reolink cameras
