Reolink E340, 5 MP Super HD Dual-Band PTZ camera with person and pet detection
Reolink E340, Seamless PTZ View in 5MP Super HD, more powerfull, still small, 3x optical zoom
SKU
E340-W
Reolink E340
5MP Dual-Band WiFi Pan/tilt/zoom camera
- 5 MP Super HD camera. See and record precious moments in remarkable clarity

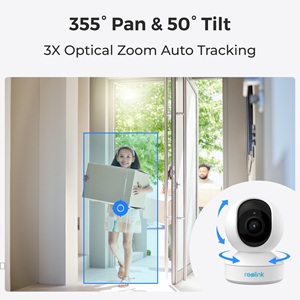

- 355° Pan & 50° Tilt; control it to spin, and see areas where fixed cameras cannot reach
- 3x optical zoom. See details in clarity from afar with optical zoom
- Dual-Band WiFi; 2.4/5 GHz WiFi for simple installation and reliable network performance
- Easy set-up, up and running in minutes
- Night vision, up to 12 meters, see every move clearly in low light
- Motion or scheduled recording. Support recording when movement is detected or during scheduled time
- Motion alerts, inform you when something unusual is detected
- Human and pet detection
- Two-way audio, communicate with families directly through the camera
- Remote live view anytime. See what’s going on from phone, tablet or PC anywhere anytime/li>
- Flexible and secure storage. MicroSD card slot (max 256GB)
- Works with Google Assistant
| SKU | E340-W |
|---|---|
| Brand | Reolink |
| EANcode | 6975253981571 |
| Model: Reolink E340 | ||
| Hardware | Sensor | 1/2.7" CMOS Sensor |
| Display Resolutie | 2560x1920 (5 Megapixel) | |
| Lens | f=2.8-4mm Autofocus, F=2.0 | |
| Zoom | 3x optische zoom | |
| Video format | H.264 | |
| Kijkhoek | 48-98° horizontaal, 37-75° verticaal | |
| Dag en nacht | IR-cut filter met auto-switching | |
| IR nachtzicht | Tot 12 Meter (LED: 10pcs/14mil/850nm) | |
| Audio | Tweeweg audioPower interface | |
| Stroom | DC stroom | DC 5.0V/2A |
| Pan & Tilt |
Pan/tilt bereik | Pan 355°, Tilt 0~50° |
| Auto Tracking | Ondersteund | |
| Interface |
Stroom | DC stroompoort |
| Systeem | Resetknop | |
| Ethernet | Eén 10M/100Mbps RJ45 | |
| Audio | Ingebouwde mic & speaker | |
| Opslag | Micro SD kaartslot (max 256GB) | |
| WiFi | WiFi standaard | IEEE 802.11 a/b/g/n |
| Operating frequency | 2.4 GHz / 5 GHz | |
| WiFi security | WPA-PSK/WPA2-PSK | |
| Software | Frame rate | Main stream: 2fps-20fps (default 20fps) Sub stream: 4fps-15fps (default 7fps) |
| Code rate | Main stream: 1024Kbps-5120Kbps (default 4096Kbps) Sub stream: 128Kbps-512Kbps (default 160Kbps) |
|
| OS ondersteuning | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Opname modus | Bewegingsopname (default), op schema | |
| Netwerkprotocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
| Slim Alarm | Bewegingsdetectie/Persoonsdetectie/Huisdierdetectie | |
| Werkt met | Google Assistant, Reolink Cloud | |
| Gebruikers | 20 gebruikers (1 admin account & 19 user accounts); Ondersteunt tot 12 video streams gelijktijdig (10 substreams & 2 mainstreams) | |
| Werkomgeving | Temperatuur | Bedrijfstemperatuur -10° ~ 55° C |
| Luchtvochtigheid | Bedrijfsluchtvochtigheid: 20% ~ 85% | |
| Afmeting & gewicht |
Afmeting | Φ84x118mm |
| Gewicht | 275 gr | |
| Garantie | Beperkte garantie | 2-jaar beperkte garantie. Zie Reolink Support - Official Reolink Help Center |
Of ga naar downloads: Datasheets Reolink camera's
In de doos
