Foscam FN9108W-B4-2T, 8-channel WiFi security kit

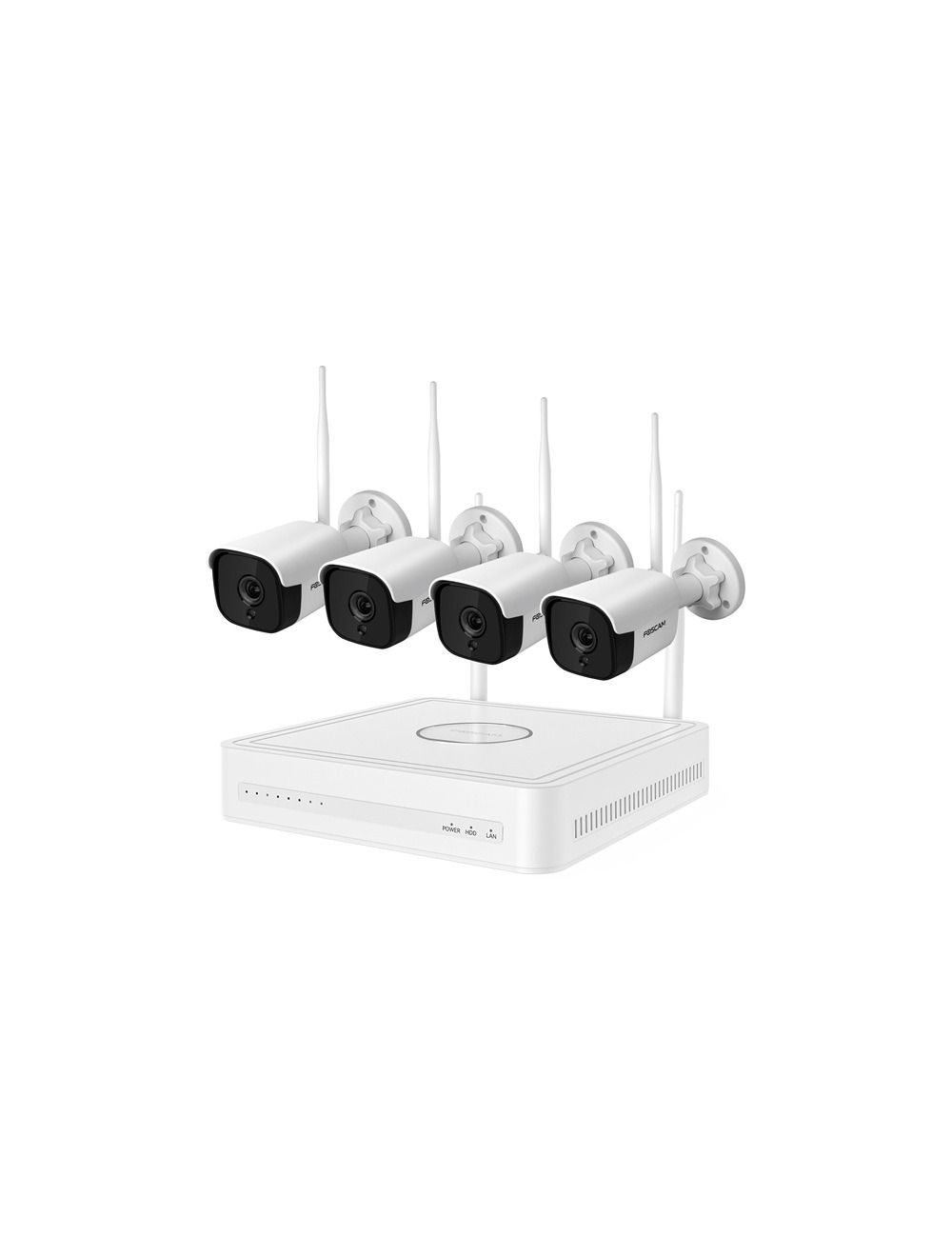

Set consists of 1 NVR (FN9108W) and 4 cameras (FI9925W). 2TB pre-installed hard drive
Foscam FN9108W-B4-1T
3K/5MP WiFi NVR security kit. With this set you get 4 WiFi cameras (FI9925W) and an NVR. You can expand the set to 8 cameras and you can choose from most Foscam cameras, both WiFi and PoE, in addition to the FI9925W.
Complete protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home complete protection.
WiFi 6 connection
This NVR kit supports WiFi 6, it ensures superfast, lag-free streaming with high stability..
Mount it anywhere you like
Enjoy all the advantages of this wireless security system, such as flexible mounting positions, easier wiring works and less drilling or screws.
.

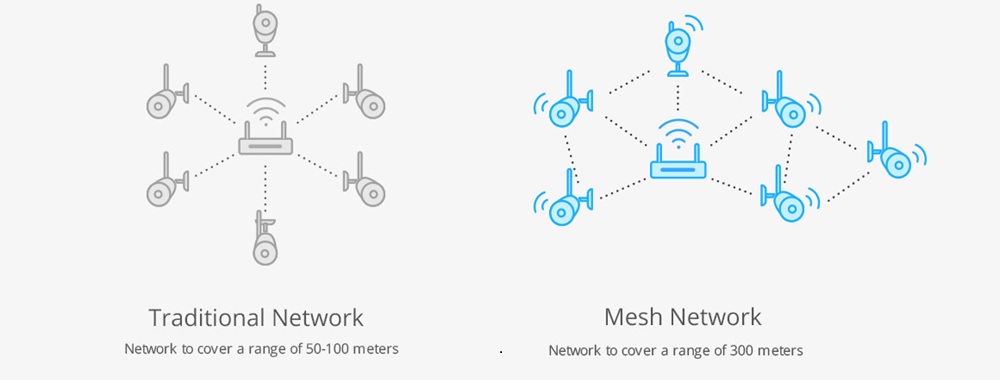

Easy connection
Thanks to Mesh network solution, each camera serves as a hop point for other cameras in the system and connect in series. This helps the cameras to deliver a strong WiFi signal as they are connecting to other cameras and not relying on one-to-one communication with the NVR. It allows the network to cover a range up to 300 meters if there is no obstruction. The Mesh connection between cameras in this set only works with FI9925W.
N.B.: Only one optimal route will be automatically selected. For example, if one IPC is connected to NVR, it will not be connected to another IPC.

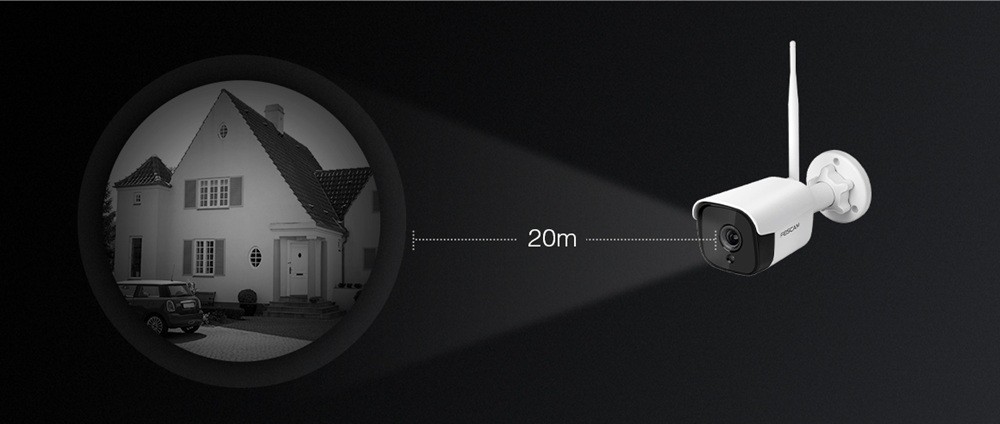

High performance night vision
Long night vision distance (up to 20 meter), which enables clear video evidence of theft or intrusion that occur in low-light environment.
More efficient streaming, optimum viewing experience
|
Newer video stream compression H.264+ Codec, which has advantages of storage and bandwidth savings with greater efficiency. Achieve high quality video preview and recording in low bit rate.
|
 |
 |
|
Features
| SKU | FN9108W-B4-2T |
|---|---|
| Brand | Foscam |
| EANcode | 6954836098929 |
| NVR | Model | FN9108W | |||||
|---|---|---|---|---|---|---|---|
| Video Input | IP Video Input | 8 channels IP camera input | |||||
| Video Output | HDMI Output | 1×HDMI | |||||
| VGA Output | 1×VGA | ||||||
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 | ||||||
| Recording | Recording resolution | Up to 8MP per channel (8ch@8MP ) | |||||
| Record mode | Time scheduled / human detect | ||||||
| Compression format | H.264+ | ||||||
| Playback | Synchronous playback | 8 channel synchronous video playback | |||||
| Playback mode | Pause / Stop / Fast / Slow / Frame play | ||||||
| Network | Ethernet | One 10/100Mbps RJ45 port | |||||
| Mesh | √ | ||||||
| WiFi standard | IEEE802.11b/g/n/ax | ||||||
| WiFi security | WPA, WPA2 | ||||||
| Network Protocol | IP, TCP, UDP, SMTP, DHCP | ||||||
| HDD | Capacity | Support up to 8TB HDD; 2TB pre-installed harde drive |
|||||
| External interface | Network interface | 1× 10/100 Mbps RJ45 port | |||||
| USB interface | 2× USB2.0 interface for mouse and external storage | ||||||
| Button | 1× reset button | ||||||
| Software | Smartphone | iOS, Android, 3G/4G/5G Smartphones | |||||
| Language | Language | 20 | |||||
| Physical and environmental | Power supply | DC 12V/2A | |||||
| Dimension (L x W x H) | 234 x 234 x 52mm | ||||||
| Net weight (g) | 1070g | ||||||
| Operating temperature | 0°C~50°C | ||||||
| Operating humidity | 20%~85% (non-condensing) | ||||||
| Storage temperature | -20°C~60°C | ||||||
| Storage humidity | 0%~90% (non-condensing) | ||||||

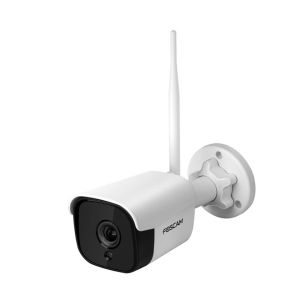

| Camera | Model | FI9925W | |||||
| Image sensor | Sensor Type | High Definition Color CMOS Sensor | |||||
| Video quality | 5MP (2880x1620) | ||||||
| Backlight compensation | √ | ||||||
| Lens | Lens type | f:4mm, F:2.0 | |||||
| IR range | 20 meter | ||||||
| Infrared Mode | Automatic | ||||||
| Field of view | Diagonal 104.5°, horizontal 91.8°, vertical 51.2° | ||||||
| Network | Mesh | Each IPC as a WiFi relay | |||||
| Wireless standard | IEEE802.11b/g/n/ax | ||||||
| Data rate | IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.); IEEE802.11ax: 286.8Mbps (Max). |
||||||
| Wireless security | WPA, WPA2 | ||||||
| Network Protocol | IP, TCP, UDP, NTP, DHCP | ||||||
| System requirements | OS | Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app) | |||||
| Smartphone | iOS, Android, 3G/4G/5G Smartphones | ||||||
| Software features | Video format | H.264+ | |||||
| Multi-Stream | Dual stream | ||||||
| Human detection | √ | ||||||
| Day/night | √ | ||||||
| Zoom | 20x digital zoom function | ||||||
| Physical and environmental | Waterproof | IP66 | |||||
| Net weight | 390g | ||||||
| Power | DC12V | ||||||
| Power consumption | <5W | ||||||
| Dimension (L x W x H) | 177 x 70 x 70 | ||||||
| Certification | FCC, CE, IP66 | ||||||
| Operating temperature | -10°C~50°C | ||||||
| Operating humidity | 10%~80% (non-condensing) | ||||||
| Storage temperature | -20°C~60°C | ||||||
| Storage humidity | 0%~90% (non-condensing) | ||||||

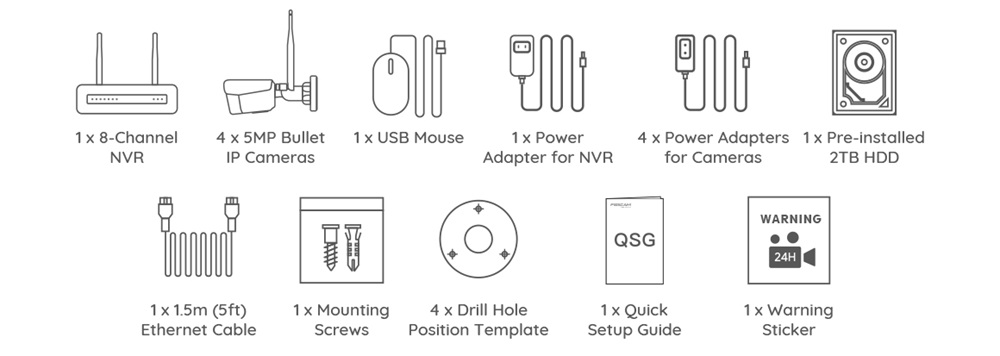

In the box
