Reolink G770-C, 4K/8MP Dual-lens 4G LTE battery camera with auto-zoom tracking

4K/8MP UHD | 4G LTE network | Smart detection | Dual lens, dual view

SKU
G770-C

Reolink G770-C

This 4K/8MP dual-lens dual-view battery camera gives you remote access to nature or your company with 4G LTE. With the longlasting battery and (optional) a Reolink Solar Panel 2 USB-C you can observe your animals or industrial estate continuously. The G770-C combines wide-angle and telephoto lens, displaying both views on a single screen. The close-up view uses 6x hybrid zoom and PT capabilities to track and focus on targets.

  • 8MP Ultra HD resolution for detailed images and videos;
  • 360° coverage. Camera can pan 355° and tilt 90°, for a wide range;
  • At night, you can turn on the spotlight for vivid color night vision. Or use the 940nm no-glow IR LEDs for black and white monitoring in darkness (spotlight can be turned off manually);
  • Intelligent person, vehicle and animal detection with accurate alerts;
  • PIR detection, customize and define motion zones as needed;

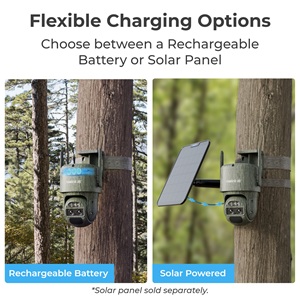

  • Long lasting, rechargeable battery. Also works with Reolink Solar Panel (not included), for continuous power;
  • Flexible storage options. Supports local storage on microSD card up to 128GB. Or use Reoloink Cloud or an FTP server;
  • Works on 4G LTE mobile network, with Nano SIM card (not included). Use on any location, perfect for areas without WiFi or power;
  • Two-way audio, built-in microphone and speaker;
  • Survives rain, snow and wind, camera is IP65 weatherproof;
  • Magical time lapse videos;
  • SmartHome integration. Thanks to compatibility with Smart Home devices like Google Assistant, access the camera's live view instantly with simple voice commands;
  • Total control, anywhere, anytime. With real-time alerts, live view anywhere, adjustable detection zones and smart playback in free Reolink app (iOS and Android) on smartphone or tablet.

Read more about Reolink

More Information
SKU G770-C
Brand Reolink
EANcode 6976930221904
Model: Reolink G770-C (camouflage)
Video & Audio Sensor 1/3" CMOS Sensor
Video Resolution Up to 3840 x 2160 (8MP) @15 frames/sec
Lens f=2.8mm @ F1.6, f=8mm @ F1.6
Video format H.264, H.265
Field of view Horizontal 108.4°~38°, vertical 57.3°~21.2°
Day & night IR-cut filter with auto-switching
IR night vision Up to 30 meter (LED: 2pcs/940lum)
Color night vision Spotlight: 1pc/6500K/450lum
Zoom 6x hybrid zoom
Audio two-way audio

Software features
Frame rate Mainstream: 10fps - 15fps
Substream: 10fps - 15fps
Code rate Mainstream: 1024Kbps - 4096Kbps
Substream: 64Kbps - 512Kbps
OS PC: Windows, Mac OS; Smartphone: iOS, Android
Smart alarm PIR detection / person detection / vehicle detection / animal detection
Protocols & standards SSL, TCP/IP, UDP. UPNP,SMTP, NTP, P2P
Max user access Support up to 12 simultaneous video streams (10 sub & 2 mainstreams)
Works with Google Assistant, Reolink Cloud
Record mode Motion-triggered recording
3G & 4G bandwidth Frequency bands Europe: LTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
Transmission data LTE FDD:  Max 10Mbps (DL), Max 5Mbps (UL)
LTE TDD: Max. 8.96 Mbps (DL), Max. 3.1 Mbps (UL)
HSPA+:  Max 42Mbps (DL), Max 5.76Mbps (UL)
UMTS:  Max 384Kbps (DL), Max 384Kbps (UL)
Power Battery 7.2V 5100mAh rechargeable battery (battery life varies based on settings, usage & temperature);
36.72Wh (power capacity)
Solar panel Reolink Solar Panel 2 USB-C (optional)
DC power 5V/2A
Interface
Power USB type-C port
System Reset button
Local storage MicroSD card slot (max 128GB)
Network Nano SIM card slot
Audio Built-in mic & speaker
Pan & Tilt
Pan & Tilt Pan: 355°, Tilt: 0°~90°; (speed can be set)
Preset 32
Auto Tracking Support
Working environment Operating temperature -10°~55° C
Operating humidity 20%~85%
Weatherproof IP65
Size & weight Dimension 228.2 x 147 x 129 mm
Weight  1.4 kg
Warranty Limited warranty 2-year limited warranty. For support, visit Reolink Support - Official Reolink Help Center
Download Datasheets Reolink cameras

Gallery:

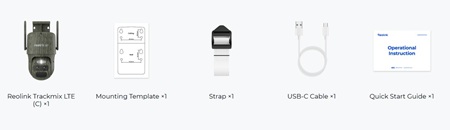

In the box: Dimension/What is what:




Note: TrackMix LTE (C) = G770-C 1) Spotlight; 2) Infrared LED; 3) Lens; 4) Mic; 5) Daylight sensor; 6) PIR sensor
MicroSD card slot: Nano SIM card slot:
