Reolink G770, 4K/8MP Dual-lens 4G LTE battery camera with auto-zoom tracking
4K/8MP UHD | 4G LTE network | Smart detection | Dual lens, dual view | IP65
SKU
G770-W
Reolink G770
This 4K/8MP dual-lens dual-view battery camera gives you remote access to nature or your company with 4G LTE. With the longlasting battery and (optional) a Reolink Solar Panel 2 USB-C you can observe your house or industrial estate continuously. The G770-C combines wide-angle and telephoto lens, displaying both views on a single screen. The close-up view uses 6x hybrid zoom and PT capabilities to track and focus on targets.

- 8MP Ultra HD resolution for detailed images and videos;
- 360° coverage. Camera can pan 355° and tilt 90°, for a wide range;
- At night, you can turn on the spotlight for vivid color night vision. Or switch it off for clear black-and-white night vision. Spotlight can be turned off manually;
- Intelligent person, vehicle and animal detection with accurate alerts;

- PIR detection, customize and define motion zones as needed;

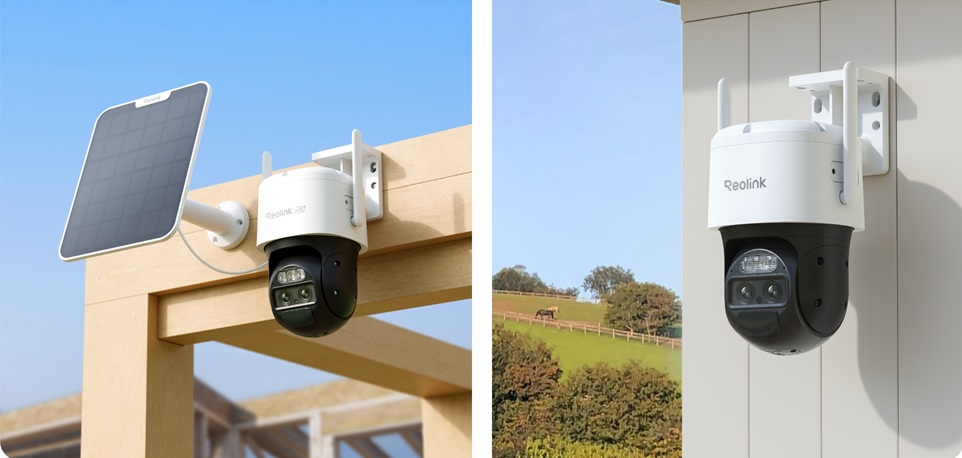

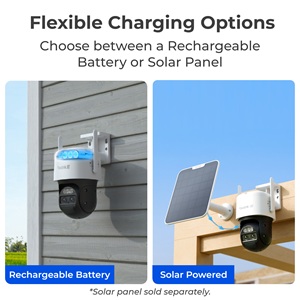

- Long lasting, rechargeable battery. Also works with Reolink Solar Panel (not included), for continuous power;

- Flexible storage options. Supports local storage on microSD card up to 128GB. Or use Reolink Cloud or an FTP server;

- Survives rain, snow and wind, camera is IP65 weatherproof;

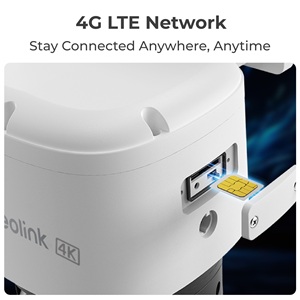

- Works on 4G LTE mobile network, with Nano SIM card (not included). Use on any location, perfect for areas without WiFi or power;

- Two-way audio, built-in microphone and speaker;
- Dual lens, Dual view, 6x hybrid zoom;

- Magical time lapse videos;
- SmartHome integration. Thanks to compatibility with Smart Home devices like Google Assistant, access the camera's live view instantly with simple voice commands;

- Total control, anywhere, anytime. With real-time alerts, live view anywhere, adjustable detection zones and smart playback in free Reolink app (iOS and Android) on smartphone or tablet.


| SKU | G770-W |
|---|---|
| Brand | Reolink |
| EANcode | 6975253983285 |
| Model: Reolink G770 | ||
| Video & Audio | Sensor | 1/3" CMOS Sensor |
| Video Resolution | Up to 3840 x 2160 (8MP) @15 frames/sec | |
| Lens | f=2.8mm @ F1.6, f=8mm @ F1.6 | |
| Video format | H.264, H.265 | |
| Field of view | f=2.8mm, H:108°, V:57.3° f=8mm,H:38°, V:21.2° |
|
| Day & night | IR-cut filter with auto-switching | |
| IR night vision | Up to 30 meter (LED: 2pcs/940lum) | |
| Color night vision | Spotlight: 1pc/6500K/450lum | |
| Zoom | 6x hybrid zoom | |
| Audio | two-way audio | |
Software features |
Frame rate | Mainstream: 10fps - 15fps Substream: 10fps - 15fps |
| Code rate | Mainstream: 1024Kbps - 4096Kbps Substream: 64Kbps - 512Kbps |
|
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Smart alarm | PIR detection / person detection / vehicle detection / pet detection | |
| Protocols & standards | SSL, TCP/IP, UDP. UPNP,SMTP, NTP, P2P | |
| Max user access | Support up to 12 simultaneous video streams (10 sub & 2 mainstreams) | |
| Works with | Google Assistant, Reolink Cloud | |
| Record mode | Motion-triggered recording | |
| 3G & 4G bandwidth | Frequency bands | Europe: LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 |
| Transmission data | LTE FDD: Max 10Mbps (DL), Max 5Mbps (UL) LTE TDD: Max. 8.96 Mbps (DL), Max. 3.1 Mbps (UL) HSPA+: Max 42Mbps (DL), Max 5.76Mbps (UL) UMTS: Max 384Kbps (DL), Max 384Kbps (UL) |
|
| Power | Battery | 7.2V 5100mAh rechargeable battery (battery life varies based on settings, usage & temperature); 36.72Wh (power capacity) |
| Solar panel | Reolink Solar Panel 2 USB-C (optional) | |
| DC power | 5V/2A | |
| Interface |
Power | USB type-C port |
| System | Reset button | |
| Local storage | MicroSD card slot (max 128GB) | |
| Network | Nano SIM card slot | |
| Audio | Built-in mic & speaker | |
| Pan & Tilt |
Pan & Tilt | Pan: 355°, Tilt: 0°~90°; (speed can be set) |
| Preset | 32 | |
| Auto Tracking | Support | |
| Working environment | Operating temperature | -10°~55° C |
| Operating humidity | 20%~85% | |
| Weatherproof | IP65 | |
| Size & weight | Dimension | 228.2 x 147 x 129 mm |
| Weight | 1.4 kg | |
| Warranty | Limited warranty | 2-year limited warranty. For support, visit Reolink Support - Official Reolink Help Center |
| Download | Datasheets Reolink cameras | |
Gallery:

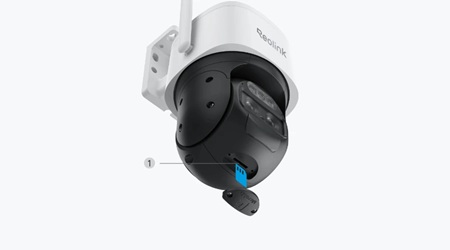

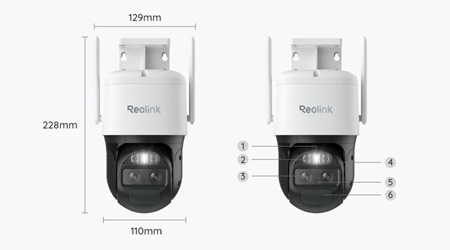

| Dimension/what is what: | MicroSD card slot |
![]() |
![]() |
| 1) Spotlight; 2) Infrared LED; 3) Lens; 4) Mic; 5) Daylight sensor; 6) PIR-sensor | 1) MicroSD card slot |
