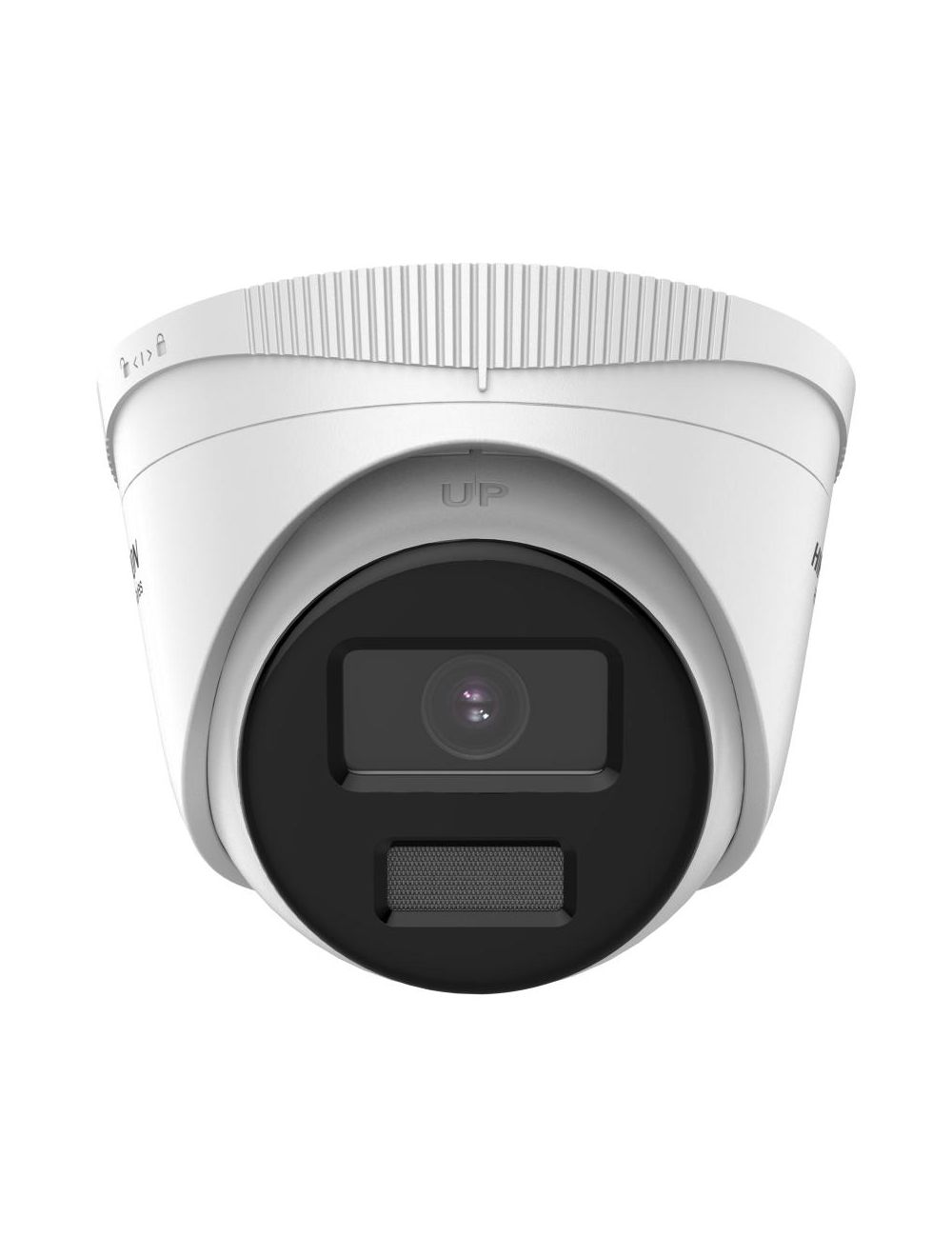

Hikvision HWI-T249HA 2.8MM, 4MP HiWatch ColorVu network turret camera
HiWatch Series: 4MP ColorVu Turret camera | IP67 | F1.0 super aperture
SKU
HWI-T249HA(2.8MM)-W
Related Products
Check items to add to the cart or
HWI-T249HA
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
- High quality imaging with 4 MP resolution
- 24/7 colorful imaging
- Support Human and Vehicle Detection
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
Lees meer over / read more about Hikvision HiWatch series
| SKU | HWI-T249HA(2.8MM)-W |
|---|---|
| Brand | Hikvision |
| EANcode | 6931847178567 |
| HWI-T249HA-2.8MM | |
| Camera | |
| Image sensor | 1/3"CMOS |
| Max Resolution | 2560 x 1440 |
| Min. Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with white light |
| Shutter time | 1/3s to 1/100,000s |
| Day&Night | 24/7 color imaging |
| Angle adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Lens | |
| Lens type | Fixed focal lens |
| Aperture | F1.0 |
| Depth of field | 2.8mm: 2 m to ∞ |
| Iris type | Fixed |
| Lens mount | M12 |
| Focal length & FOV | 2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 113° |
| DORI | |
| DORI | D: 64m, O: 25m, R: 12m, I: 6m |
| Illuminator |
|
| Supplement light type | White light |
| Smart supplement light | Yes |
| Supplement light range | Up to 30 m |
| Video | |
| Main stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 type | Baseline profile/Main profile/High profile |
| H.265 type | Main profile |
| Bit rate control | CBR, VBR |
| Region of interest (ROI) | 1 fixed region for main stream |
| Image | |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy mask | 4 programmable polygon privacy masks |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, QoS, IPv6, UDP |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Web browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Basic event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
| General | |
| Storage conditions | -30 °C to 60 °C. Humidity 95% or less (non-condensing) |
| Startup and operating conditions | -30 °C to 60 °C, humidity: 95% or less (non-condensing) |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Linkage method | Upload to FTP, notify surveillance center, send email, trigger capture |
| Material | Metal & plastic |
| Dimensions | Camera: Ø112 mm × 88.4 mm With package: 150 mm × 150 mm × 141 mm |
| Weight | Camera: approx. 370 g. With package: approx: 600 g |
| General function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | |
| Environment | CE-RoHS, WEEE, Reach |
| Protection | IP67 |
Download @: HikVision/HiWatch camera's
