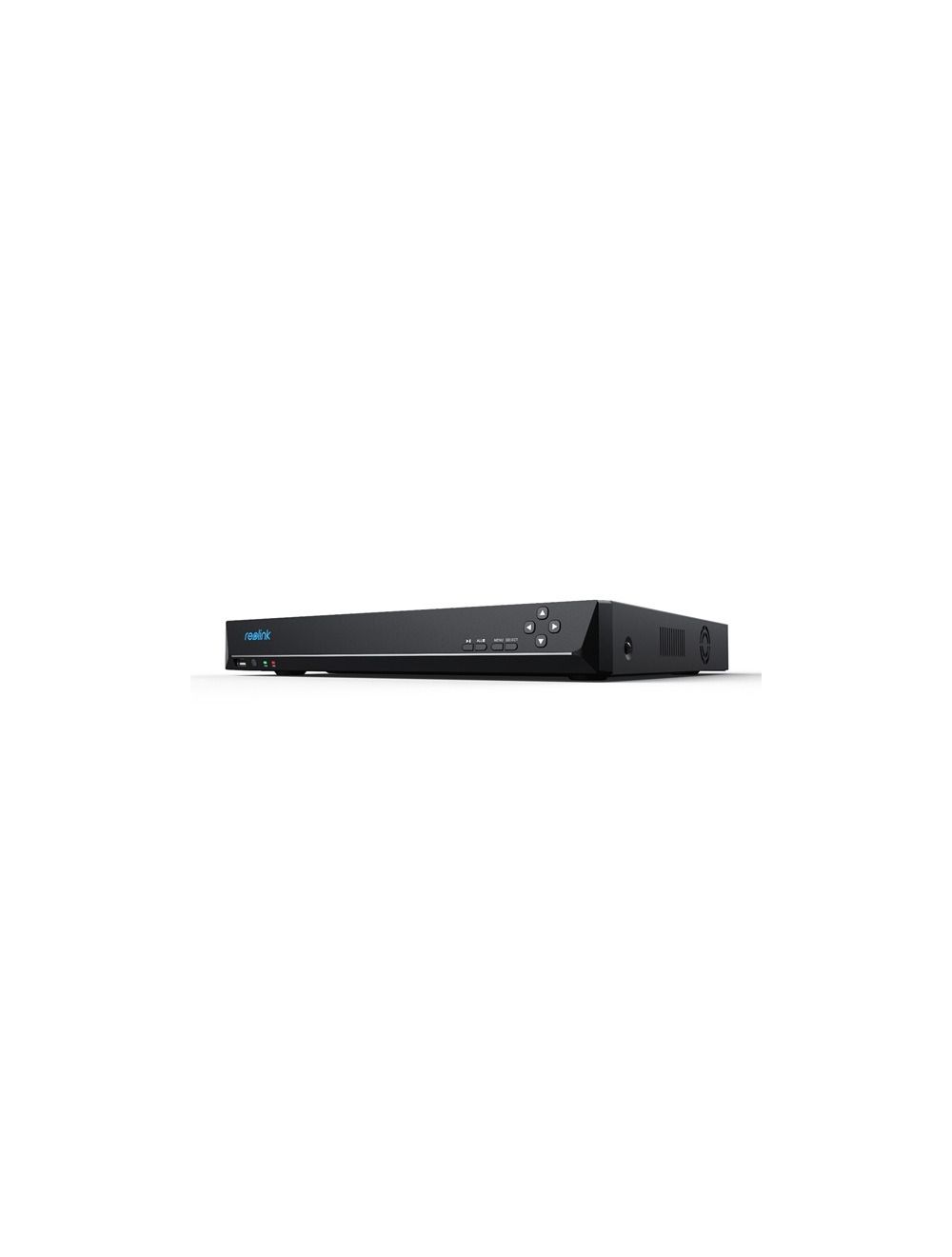

Reolink NVS36, 36-channel PoE NVR with 48TB storage capacity
NVS36, 8x alarm in/4x alarm out, 2-way audio via NVR, 3x16TB HDD capacity
SKU
NVS36
Reolink NVS36
First class security solutions with this 36-channel NVR. Boasting 48TB storage capacity, it ensures your 24/7 footage is securely stored locally. Feel free to add high-definition cameras with resolutions up to 16MP, capturing every detail. This NVR also allows two-way audio communication. The PoE connection enables easy and flexible setup without cluttered cables. Moreover, multi-channel management makes monitoring multiple areas effortless.

- Supports up to 36 channels of IPC access, each channel up to 16MP input
- 24/7 recording. Continuous recordings directly to your hard drive with expandable storage

- 3x16TB HDD capacity. With three SATA ports, it supports up to 48TB storage capacity (max.16TB HDD for each SATA)

- 8x Alarm in / 4x Alarm out. Customizable alarm input/output channels enable versatile security configurations

- 2-way audio via NVR. Convenient two-way audio communication enhances surveillance experience

- Smart playback

- Customize your own security system by connecting your cameras to a Reolink NVR, allowing you to centrally manage all your devices

- Local and external access. Access the live feeds offline via a monitor or an HD TV, or remotely via the Reolink app

| SKU | NVS36 |
|---|---|
| Brand | Reolink |
| EANcode | 6975253983957 |
| Model: Reolink NVS36 | ||
| Externe Interfaces | Video out | 1 HDMI, 1 VGA |
| Audio ports | 1 audio-in channel, RCA; 1 audio-out channel, RCA | |
| USB ports | Front panel: 1x USB 2.0; Back panel: 1x USB 2.0, 1x USB 3.0 | |
| Ethernet ports | 4x RJ-45, 10/100/1000 Mbps self adaptive (for IP camera's) | |
| 1x RJ-45, 10/100/1000 Mbps self adaptive (for LAN/WAN) | ||
| No PoE port | ||
| Alarm | In: 8 channels; Out: 4 channels | |
| Video | IP camera input | Support up to 36 channels of IPC access; each channel up to 16MP input |
| Video output | HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x800, 1280x720 | |
| VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | ||
| Audio | Two-way audio | Built-in audio in & out ports |
| Audio in | Via cameras with microphone; via built-in 1 channel | |
| Audio out | Via built-in 1 channel | |
| Recording | Video compression | H.265, H.264 |
| Live View/Playback Resolution | 12MP/8MP/5MP/4MP/3MP/1080p/720p | |
| Recording modes | Person/vehicle/pet detection, motion-triggered detection, 24/7 recording | |
| Synchronous Playback | 1-4 channels (supports only 1-channel playback if you view it in 8MP or higher resolution) | |
| Storage | Internal HDD | 3 SATA ports for 3 HDDs (optional) |
| Max. capacity | 48TB (max 16TB per SATA) | |
| External HDD | No | |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser supported | Edge, Firefox, Chrome, Safari | |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | |
| Max. users | 20 users (1 admin- and 19 gebruikersaccounts); up to 12 simultaneous video streams (10 substreams and 2 mainstreams) | |
| General | Working environment | Temperature: -10℃~+45℃, Humidity: 10%~90% |
| Power | DC 12V/5.4A | |
| Power consumption | <10W (without HDD) | |
| Dimension | 330 x 48 x 310 mm | |
| Weight (without HDD) | 2.26 kg | |
| Warranty | Limited warranty | 2-year limited warranty. For support, visit: Reolink Support - Official Reolink Help Center |
Or download @ Reolink NVR's

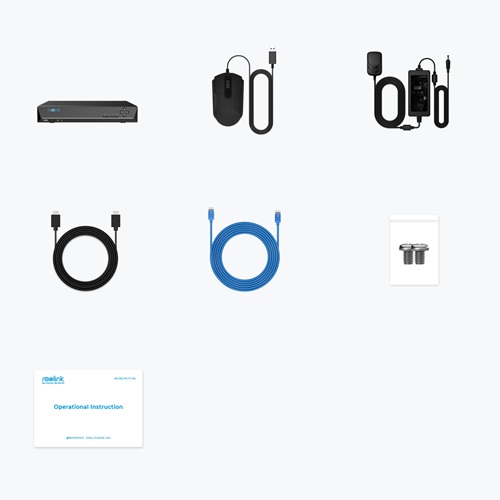

In the box:

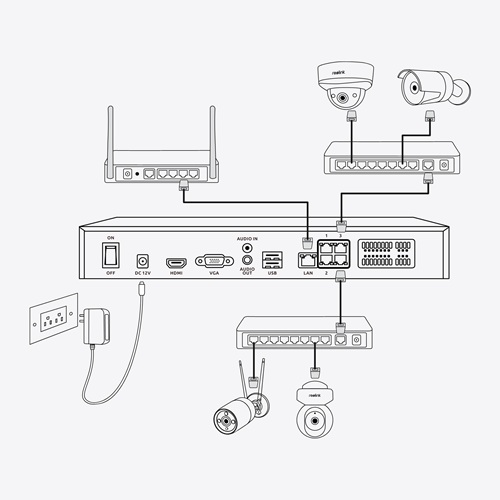

Setup:
