Reolink NVS8-2TB, 8-channel PoE NVR for 24/7 reliable recording
2TB HDD pre-installed, up to 8 cameras recording at the same time
SKU
NVS8-2TB
Related Products
Check items to add to the cart or
Reolink NVS8-2TB
8-ch PoE NVR, 24/7 continuous recording
- 2TB HDD pre-installed
- You can also install an external Hard Disk Drive via e-SATA for more storage
- Storage capacity up to 12TB
- Support all cameras recording at the same time (up to 8 cameras).
- 24/7 continuous, reliable recording
- This PoE NVR works perfect with all IP cameras, including 16MP, 12MP, 8MP, 5MP and 4MP WiFi/PoE cameras
- Build your own surveillance system (max 8 cameras)
- Easy setup with Plug&Play
- Local and remote access and control via Reolink app or Reolink Client
| SKU | NVS8-2TB |
|---|---|
| Brand | Reolink |
| EANcode | 6975253986545 |
| Model: Reolink NVS8-2TB | ||
| Video / Audio input | IP video input | PoE IP Camera x 8 |
| Audio input | Cameras with built-in mic | |
| Video output | HDMI | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA | 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Recording | Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video format | H.265/H.264 | |
| Recording modes | Person/vehicle/pet detection, motion-triggered detection, 24/7 recording | |
| Synchronous playback | 1-4 channels (supports only 1-channel palyback if you view it in 8MP or higher resolution) | |
| Storage | Internal HDD | 1 SATA interface (2TB HDD included) |
| Max. capacity | 12TB (Max 6TB per HDD) | |
| External HDD | 1 x eSATA interface voor HDD | |
| External Interfaces | USB ports | 2 x USB 2.0 |
| Audio port | 1 audio out channel, RCA | |
| Video out | 1 HDMI, 1 VGA | |
| Ethernet ports | 1x RJ45, 10/100/1000Mbps self-adaptive for LAN/WAN 8x RJ45, 10/100Mbps self-adaptive PoE ethernet interface for IP cameras |
|
| PoE | Max power per port | 25W |
| Supported standard | IEEE 802.3at | |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser supported | Edge, Firefox, Chrome, Safari | |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | |
| Max. users | 20 users (1 admin en 19 gebruikeraccounts); supports up to 12 simultaneous videostreams (10 substreams en 2 mainstreams) | |
| General | Working environment | Temperature: -10℃~+45℃, Humidity: 10%~90% |
| Power supply | DC 48V ~ 53V | |
| Power consumption | <10W (without HDD) | |
| Dimension (mm) | 260(W) x 41(H) x 230(D) | |
| Weight (without HDD) | 1.4 kg | |
| Warranty | Limited warranty | 2-year limited warranty. For support: Reolink Support - Official Reolink Help Center |
Or download (pdf).

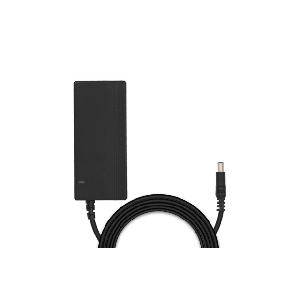

In the box:
