Reolink P757, 16MP UHD IK10 vandal-proof Dual-lens PoE camera

180gr panoramic view | Motion track | Smart detection | Color night vision

SKU
P757-W

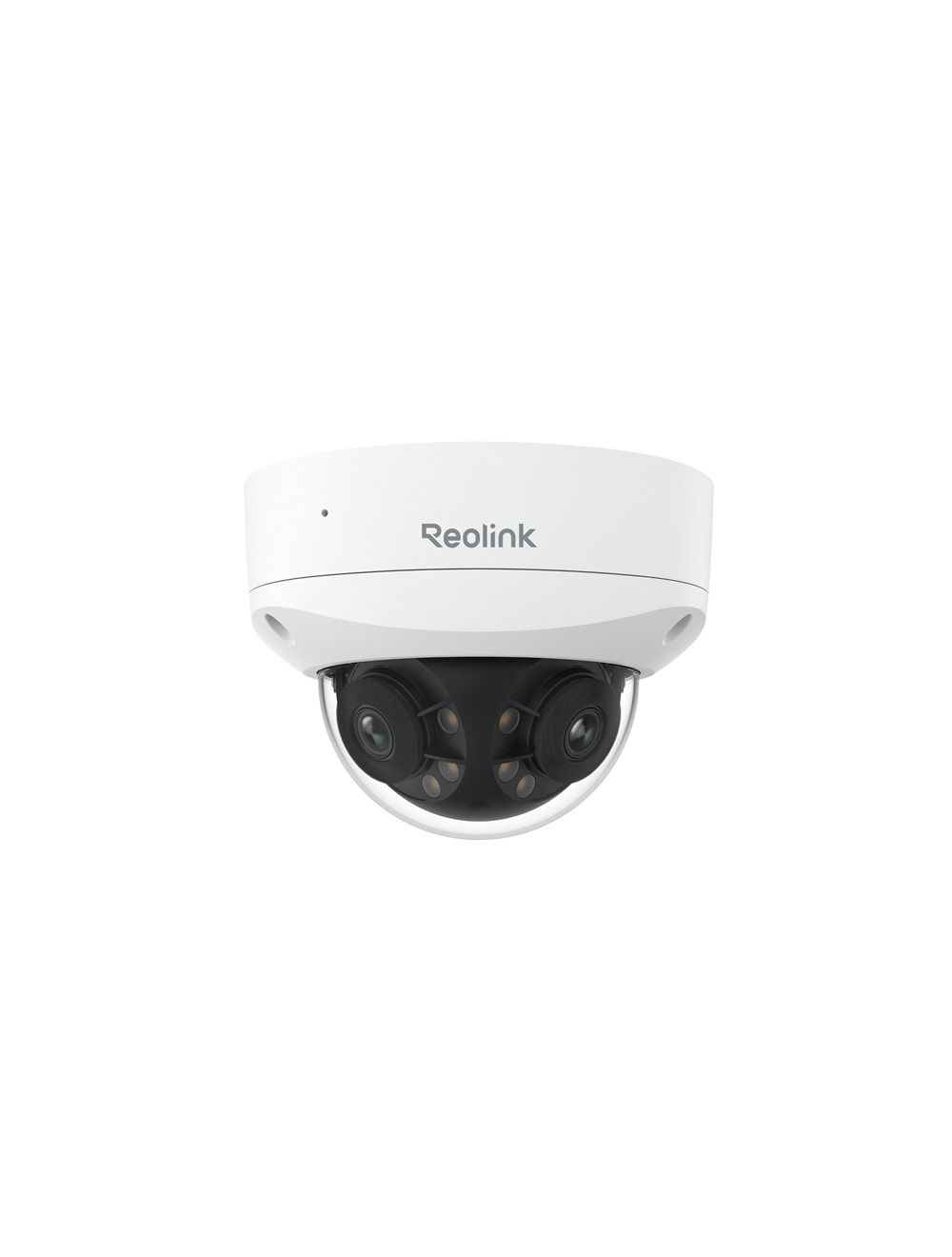

Reolink P757

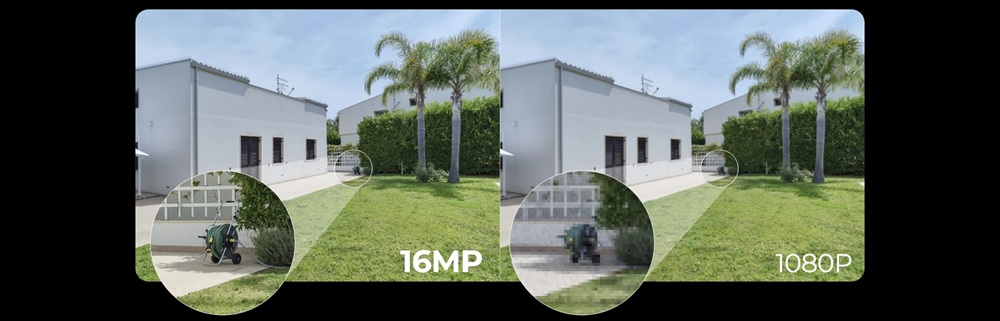

IK10 vandal proof PoE dome camera with 16MP resolution, motion track and 180° panoramic view! Capture the finest details in 16MP. The dual 4K sensors and the quad-core SoC (chip) of the Reolink P757 work together to produce incredibly sharp images, you never miss a thing. It captures license plates of parked cars clearly from up to 16 meters away!

  • 180° panoramic view with no blind spots or distortion. Combines two 4K images into one expansive view, effectively replacing two single-lens cameras;

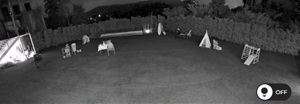

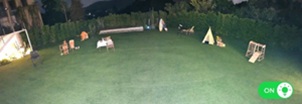

  • IR night vision up to 30 meter. Featuring an F1.6 large aperture, the P757 delivers superior spotlight night vision even in low-light conditions. With different modes, customize to your surveillance needs;

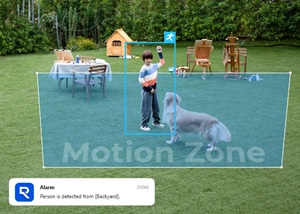

  • Smart detection with no monthly fees. Thanks to advanced algorithms, the camera smartly distinguishes human, vehicle and animal movements from other objects, significantly reducing false alarms.

    Upon motion detection, push notifications and email alerts will be sent to you instantly, ensuring you stay alerted;
  • Dual deterrents, double security. Equipped with built-in spotlights and a siren, the camera effectively deters intruders;
  • IK10 vandal proof rating. This camera can withstand powerful impacts and tampering, even with blunt objects like bats, clubs or hammers;
  • IP67-rated weatherproof, ensuring maximum protection in any weather condition;

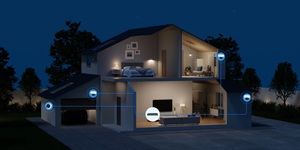

  • Simple PoE installation. With one cable providing both power and network connectivity, you can avoid complex wiring and enjoy a hassle-free setup;
  • Time lapse videos, view the day in one minute;

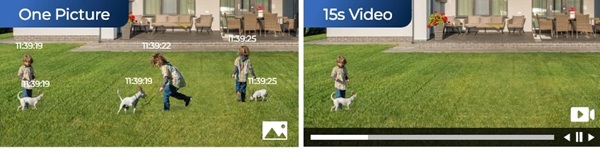

  • Motion track. The P757 records a target's movement (person, vehicle or animal) over 15 seconds into a single image, allowing a fast, convenient preview of the event. It significantly increases the amount of information contained in a single picture;
  • 24/7, scheduled or motion-triggered recording. Choose what suits you best;
  • Choose from versatile storage options: MicroSD card (up to 256GB, not included), Reolink NVR or FTP server;
  • Compatible with Google Assistant;
  • Access your camnera from anywhere, anytime with free Reolink app (iOS and Android) on smartphone or tablet;
  • Or use free Reolink Client for your pc.

Read more about Reolink.

More Information
SKU P757-W
Brand Reolink
EANcode 6978285031054
Model: Reolink P757
Video & Audio
Sensor 1/2.8" CMOS Sensor
Resolution 7680 x 2160 (16 Megapixel) @20 frames/sec
Lens f=2.8mm; F=1.6
Optical zoom N/A
Field of view Horizontal: 180°, Vertical: 53°
Day/night mode Auto-switching with IR-cut filter
IR Night vision Up to 30 Meter (LED: 6pcs/20mil/850nm)
Color night vision With spotlight: 6pcs/1.6W/4500K/540-840lumens
Audio Two-way audio
Video compression Mainstream H.265, Substream H.264
Frame rate Mainstream: 2fps - 20fps (default: 20fps)
Substream: 4fps - 20fps (default: 20fps)
Code rate Mainstream: 3072Kbps - 12288Kbps (default: 10240Kbps)
Substream: 128Kbps - 2048Kbps (default: 1024Kbps)
Power
PoE IEEE 802.3af, 48V active
DC power DC 12.0V-1A, <12W

Interface
Power port DC power port
Ethernet port One 10M/100Mbps RJ45
SD Card slot Supports max. 256GB microSD card
Reset button  Yes
Audio in/out Built-in mic & speaker
Software
Network protocol HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF
Browser supported Edge, Chrome, Firefox, Safari
OS supported PC: Windows, Mac OS;  Smart Phone: iOS, Android
User access Max 20 users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Other features
Smart alarm Motion detection, person detection, vehicle detection & animal detection
Recording modes Motion-triggered (default), scheduled, 24/7 recording
Time lapse Yes
Smart home compatibility Google Assistant
General Working environment Operating temperature -15° ~ 45° C;
Operating humidity 10%~90%
Weather proof IP67
Dimension ∅137 * 98.5mm
Weight 664 gr
In the box What's in the box 1x Reolink P757
1x 1m network cable
Warranty Limited warranty 2 year limited warranty. For support visit: https://support.reolink.com/hc/en-us/

Gallery:

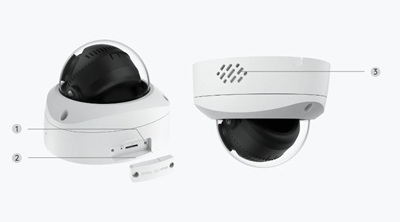

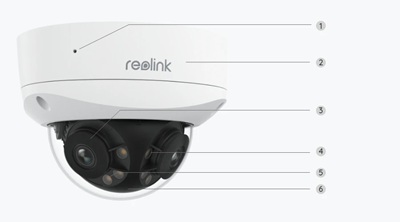

1) Microphone; 2) Logo; 3) Lens foam; 4) Spotlight & IR LED; 5) Spotlight & IR LED; 6)Daylight sensor. 1) MicroSD card slot; 2) Reset button; 3) Speaker.

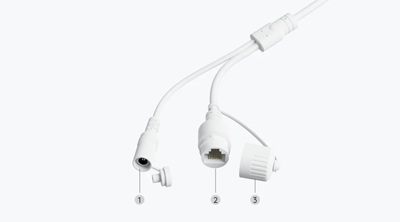

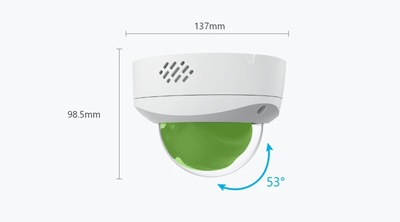

Dimension | Vertical FOV 1) Power port; 2) Ethernet port; 3) Waterproof lid
