Reolink P760-A, 4K Dual-lens PoE PTZ camera with motion tracking and AI Video search
PTZ PoE-camera with wide-angle and telephoto lens | Dual view, Dual tracking | Perimeter protection
SKU
P760-A-W

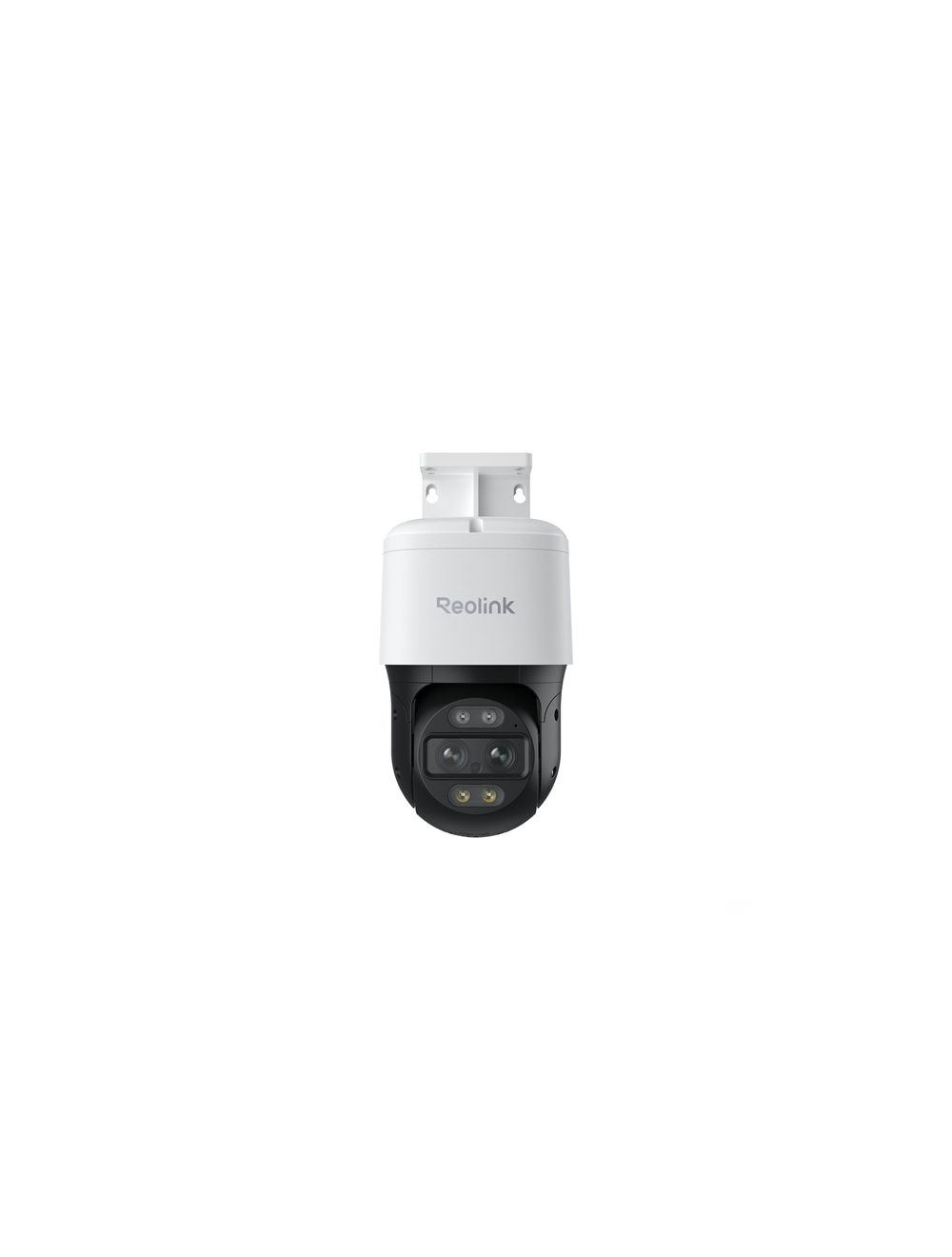

Reolink P760-A
Experience a whole new way of tracking with Reolink TrackMix Series P760-A. With pan, tilt, and 6X hybrid zoom, it can automatically track the detected target and zoom it for more details. With a wide-angle lens and a telephoto lens, it shows both full-view and close-up images of the same event on one screen. Go beyond Full HD and experience never-before-seen details with this 4K camera. The AI Video Search enables quick search in local footage using keywords or brief descriptions.

- The camera with 4K 8MP Ultra HD resolution captures images with great details;

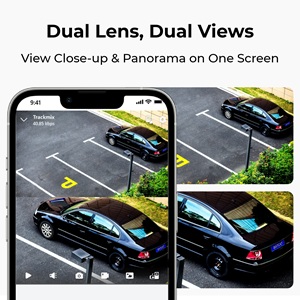

- Dual-lens: Wide-angle & telephoto lenses for full-view and close-up images. Dual view: You see both images (panoramic and zoomed) on one screen;

- With 6x hybrid zoom, capture more detail by seamlessly combining optical and digital zoom;
- Auto-zoom tracking: Pan 355° and tilt 90° to track and zoom in on a moving target automatically;

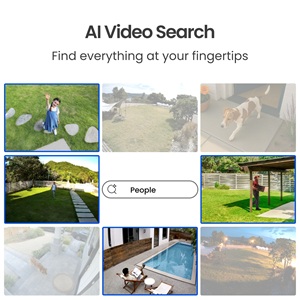

- AI video search: Input descriptive keywords to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time;

- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;

- Smart detection. P760-A can distinguish people and vehicles from other objects, providing more accurate alerts;

- Double warning for the unwelcome. Enhance your security with double warning method. With siren and spotlights both activated, this camera can deter intruders and other threats effectively;
- Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions. When its spotlights are on, P760-A provides full-color night vision. Even when there's no light at all, its infrared LEDs still enable high-quality night recording videos;

- Easy installation. Thanks to Power over Ethernet (PoE) technology, this IP camera can transmit videos and be charged simultaneously via only one network cable;

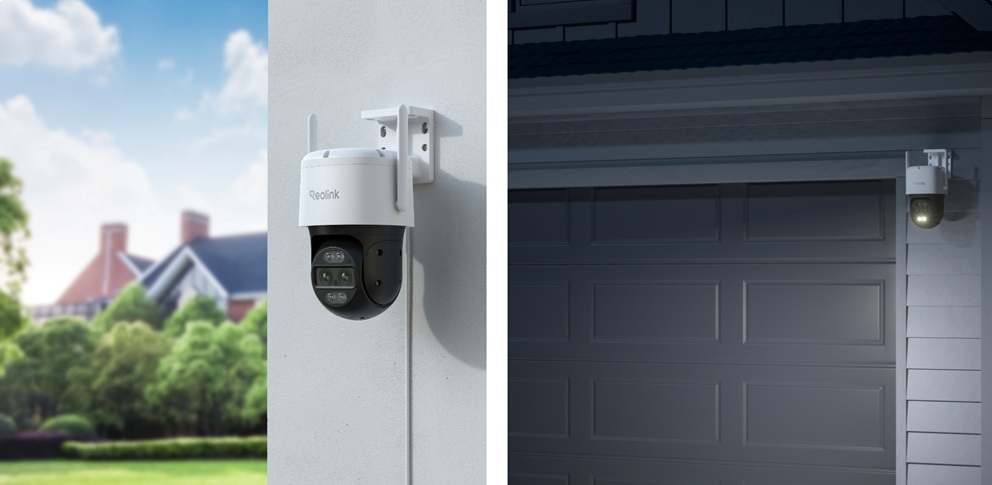

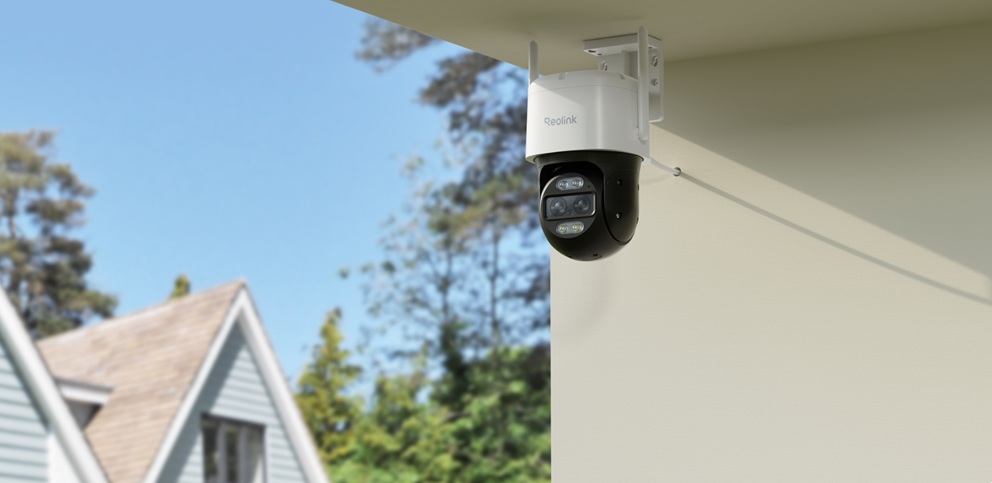

- The rugged housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions;

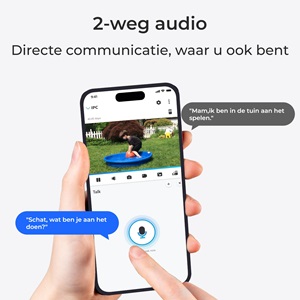

- Two way audio. You can listen and talk back via the camera's built-in mic and speaker;

- Enjoy flexibility and multiple storage options. This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR or FTP server;
- View images wherever and whenever you want in free Reolink app or Client;
- Works with Google Assistant.

| SKU | P760-A-W |
|---|---|
| Brand | Reolink |
| EANcode | 6975253983391 |
| Model: Reolink P760-A | ||
| Video & Audio |
Sensor | 1/2.7" + 1/2.8" CMOS Sensor |
| Resolution | 3840x2160 (8 Megapixel) @ 25fps 1920x1080 (2 Megapixel) @ 20fps |
|
| Lens | f=2.8mm@F=1.6, f=8mm@F=1.6 | |
| Video format | H.264, H.265 | |
| Field of view | Horizontal 104°-38°, vertical 60°-21° | |
| Zoom mode | 6x Hybrid zoom | |
| Day/night | IR cut filter with auto-switching | |
| IR Night vision | Up to 30 meter (LED: 2st/20mil/850nm) | |
| Color night vision | Spotlights: 2 st/6000K/450 lumen/15meter/4W | |
| Audio | Two way audio | |
| Frame rate | Mainstream: 2 fps-25fps | |
| Code rate | Wide angle: Main stream:2048bps-8192kbps (default 6144kbps); Substream: 128kbps-1228kbps (default 1024kbps) Tracking: Main stream: 4096kbps Sub stream: default 1024kbps |
|
| Software features |
Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
| Max users | 20 users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
| Other features |
Smart alarm | Motion detection; person detection; vehicle detection, animal detection |
| Record mode | Motion-triggered (default), scheduled, 24/7 recording | |
| Perimeter protection | Line crossing alert, zone intrusion alert, zone loitering alert | |
| AI Video zoeken | Yes | |
| Smart Home | Google Assistant | |
| Interface | Power | DC power port |
| System | Reset button | |
| Ethernet | One 10M/100Mbps; RJ45 | |
| Storage | MicroSD card slot (max 512GB), Reolink NVR | |
| Audio | Built-in mic & speaker | |
| Pan&Tilt | Pan & Tilt range | Pan: 355°; Tilt: 0~90° |
| Pan speed | 90/8°-90°/s | |
| Tilt speed | 60/8°-60°/s | |
| Preset | 64 | |
| Auto tracking | Yes | |
| Power | PoE | IEEE 802.3af, 48V Active |
| DC power | DC 12.0V=2A, <12W | |
| Working environment | Operating temperature | -10° tot 55° C |
| Operating humidity | 10% ~ 90% | |
| Waterproof | IP65 | |
| Size & weight | Dimension | 228x147x110 mm |
| Weight | 1.21 kg | |
| Warranty | Limited warranty | 2-year limited warranty. Visit Reolink Support - Official Reolink Help Center |
