Reolink RLN16-410-4T, 16-ch PoE NVR for 24/7 continuous recording
This product is no longer available. The successor is Reolink NVS16-4TB.
SKU
RLN16-410-4T
This product is no longer available. The successor is Reolink NVS16-4TB.

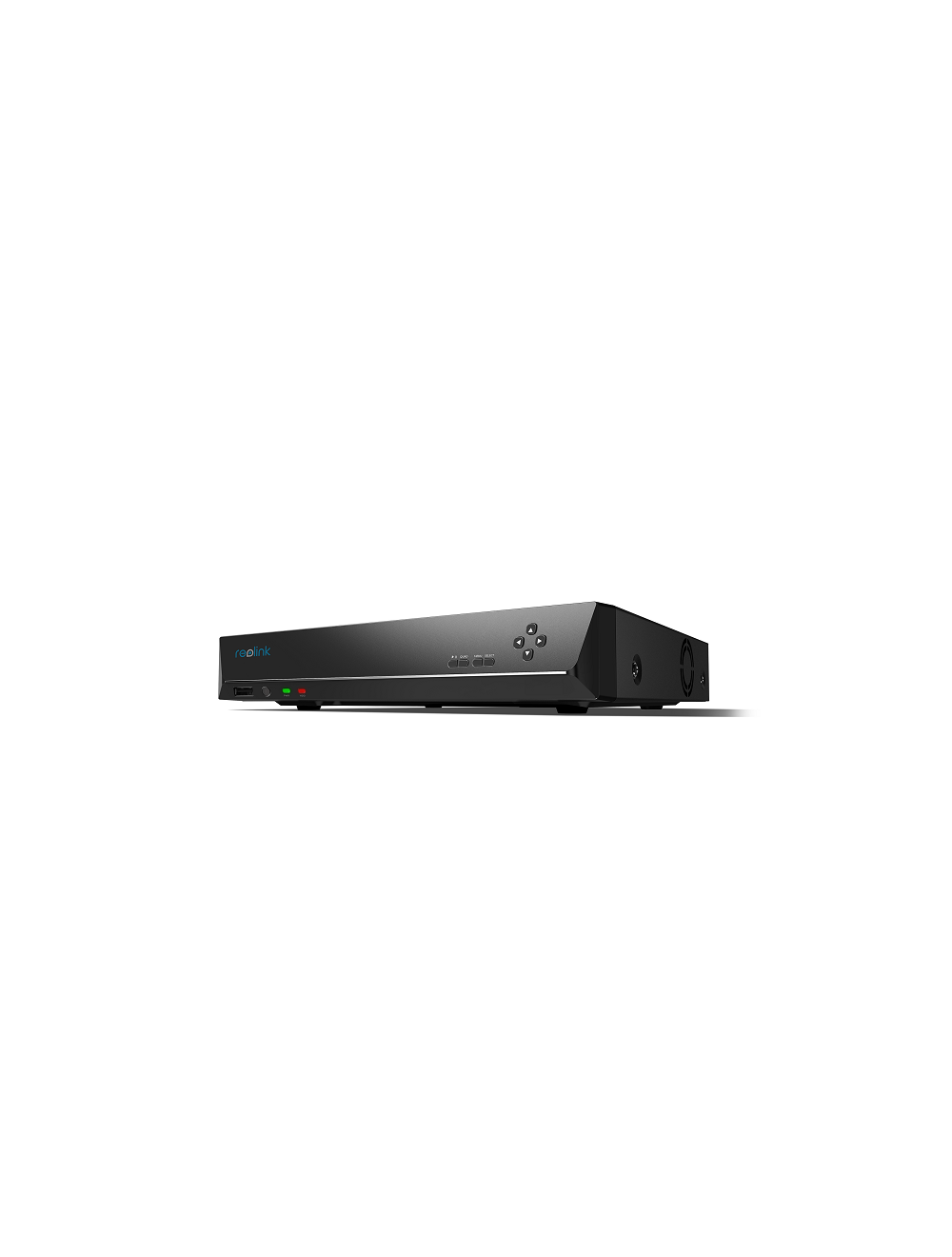

Reolink RLN16-410-4T
16-ch PoE NVR for 24/7 continuousrecording, with 4TB HDD built-in
- Reolink RLN16-410-4T
- Support all cameras recording at the same time (up to 16 cameras)
- The motion detection recording function will trigger recording only when motion is detected. It’s much more flexible and helpful for longer recording
- It supports all Reolink 12MP, 8MP, 5MP or 4MP IP cameras. You can choose up to 16 cameras (not included) to work with this NVR & build your own video surveillance system
- IP66 certified weatherproof
- A real plug and play network video recorder! It features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission
- Local and remote access & control.
Local: Connect the system to a monitor or an HD TV. For remote access and control: Use free Reolink App on a mobile device, Reolink Client on a computer or via web browsers
| SKU | RLN16-410-4T |
|---|---|
| Brand | Reolink |
| EANcode | 6975253982738 |
| Model: Reolink RLN16-410-4T | ||
| Hardware | Hardware | 4TB HDD: N6MB01 |
| Video / Audio input | IP video input | PoE IP Camera x 16 |
| Audio input | Camera with built-in mic | |
| Video / Audio output | Video output | VGA, HDMI |
| Display resolution | HDMI output: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| VGA output: 1920x1080, 1280x1024, 1280x720, 1024x768 | ||
| Audio output | 1-CH RCA | |
| Decoding | Live View/Playback Resolution | 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
| Video format | H.265, H.264 | |
| Synchronous Playback | Up to 4 ch | |
| HDD | SATA | 2x SATA interface (1x 4TB included) |
| Max capacity | Up to 12TB (max 6TB for each HDD) | |
| External HD | - | |
| External Interface | USB Interface | 2 x USB 2.0 |
| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN 16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras |
|
| PoE | Max power per port | 25W |
| Supported standard | IEEE 802.3af/at | |
| Network | Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browser supported | Edge, Firefox, Chrome, Safari | |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | |
| Max. user access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
| General | Working environment | Temperature: -10℃~+45℃, Humidity: 10%~90% |
| Power supply | DC 48V~54V | |
| Power consumption | <10W (without HDD&PoE) | |
| Dimensions (mm) | 330 x 45 x 285 | |
| Weight | 2.4 kg | |
| Warranty | Limited warranty | 2-year limited warranty |
Specs:
1. USB-port; 2. Power LED/HDD LED; 3. Control Panel
