Reolink RP-PCB12M, smart 12MP Ultra HD PoE-camera with spotlights
Bullet camera | Color night vision | AI video search | Smart event detection | Perimeter protection
SKU
RP-PCB12M-W
Related Products
Check items to add to the cart or
Reolink RP-PCB12M
12MP UHD PoE outdoor bullet camera with smart AI functions. Working in tandem, AI ISP technology coupled with the F1.6 large aperture lens ensures exceptional night vision, while spotlights bring full-color clarity to nighttime footage.
- Capture the smallest details with ultra high-definition 12MP resolution. With a wide field of view of 123°;
- Flexible light modes. Choose from three spotlight modes - Always on, Alarm-triggered and Manually off - to suit different security needs and provide effective visual deterrence;

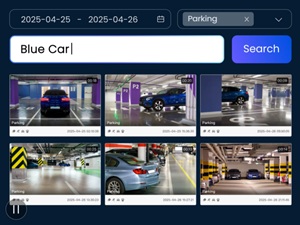

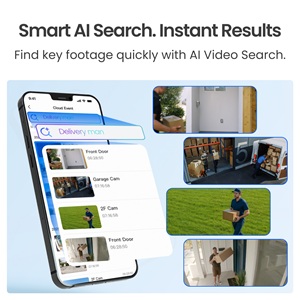

- AI video search: Input descriptive keywords to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time;
- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;
- Smart event detection (bèta): Sends instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention;
- AI ISP: An AI-powered image enhancement technology designed to improve the brightness and clarity of videos, especially in low-light environments;
- Secure storage for every need on micro SD cards (max 512GB), Reolink NVR or FTP;
- Durable and sturdy metal housing;
- Two-way communication;
- IP67 rated weatherproof;
- H.265/H.264 video compression;
- Multiple recording options;
- Smooth VMS system with remote live viewing, alarm management, device management and account management.
| SKU | RP-PCB12M-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285031870 |
| Model: RP-PCB12M | ||
| Video & Audio | Sensor | 1/2.49" CMOS Sensor |
| Resolution | 4512 x 2512 (12 Megapixel) @25 frames/sec | |
| Lens | f=4mm; F=1.6 | |
| Zoom | N/A | |
| Field of view | Horizontal: 100.4°, Vertical: 50.6°, Diagonal 123° | |
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Up to 30 meter (LED: 2st/2.8W/850nm) | |
| Color night vision | 1st/4.3W/6500K/600lm | |
| Frame rate | Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 20fps (default: 10fps) |
|
| Code rate | Mainstream: 2048Kbps - 12288Kbps (default: 9216Kbps) Substream: 128Kbps - 1228Kbps (default: 1024Kbps) |
|
| Audio | Two-way audio | |
| Videocompression | H.265/H.264 | |
| Power |
PoE | IEEE 802.3af, 48V active |
| DC power | DC 12.0V-1A, <12W | |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD vard slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Audio | Bulit-in mic & speaker | |
| AI & other features |
Person & object detection | Person detection/vehicle detection/animal detection/motion detection |
| Smart event detection | Object removal detection (bèta), forgotten object detection (bèta) | |
| Perimeter protection | Line crossing alert, zone intrusion alert, zone loitering alert | |
| Record mode | motion-triggered (default), scheduled, 24/7 recording | |
| AI video search | Yes | |
| SmartHome compatibility | Google Assistant | |
| AI ISP | Yes | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 sub & 2 main streams) |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |
| Dimension | 68x63x188mm | |
| Weight | 452.4 gr | |
| In the box | What's in the box | 1x RP-PCB12M 1x Ethernet cable 1x Quick Start Guide |
| Warranty | Limited warranty | 2 year limited warranty. For support, visit Reolink Support - Official Reolink Help Center |
Or download @ Reolink camera
Gallery:
 |
 |

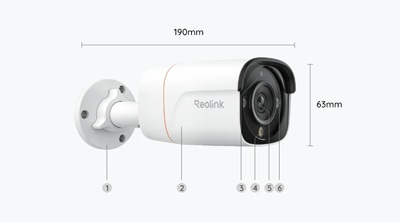

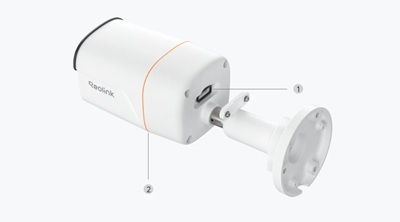

| 1) Mount; 2) Metal/aluminum case; 3) Daylight sensor; 4) Spotlight; 5) Lens; 6) Infrared LED | 1) Micro SD card slot; 2) Waterproof seal |
