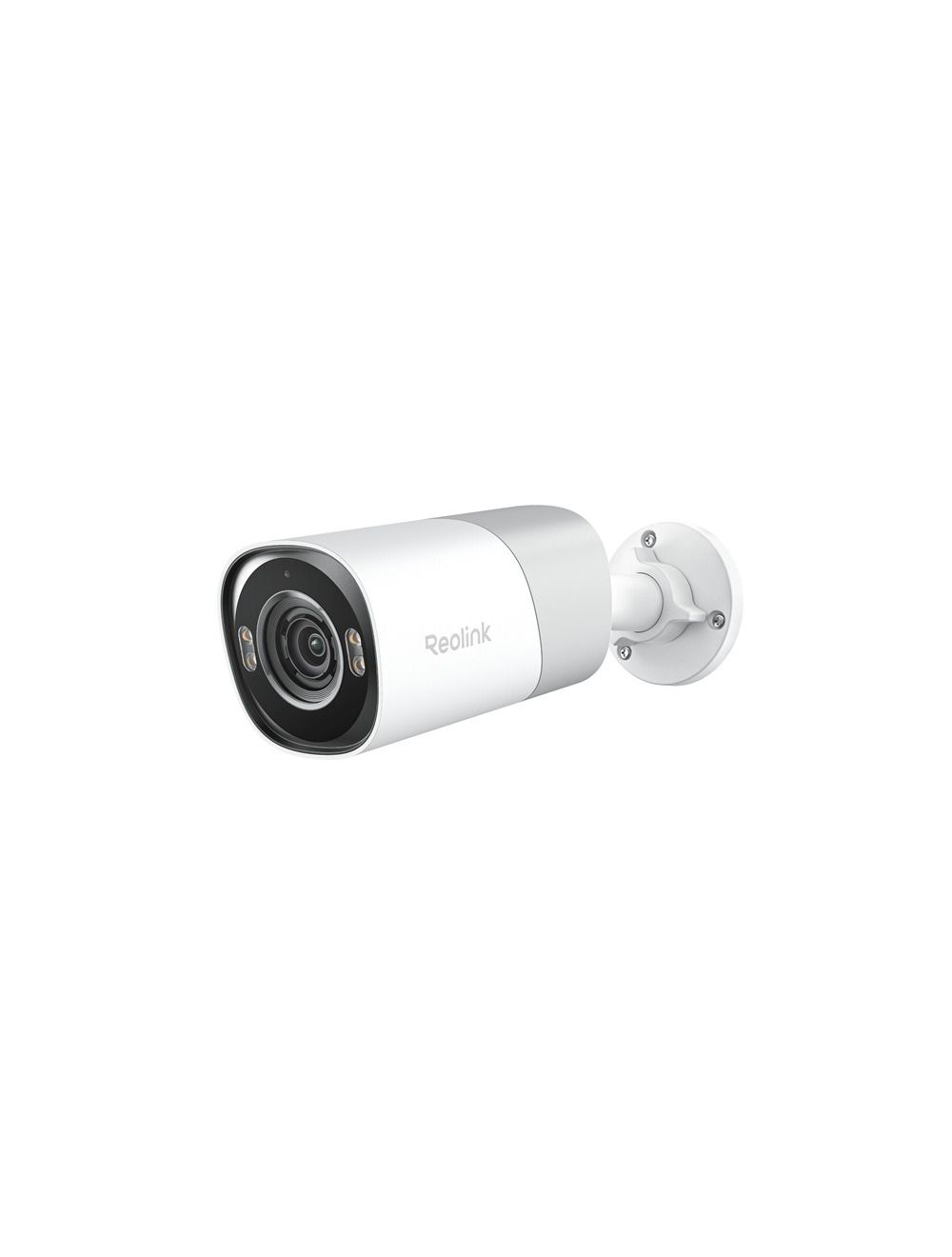

Reolink RP-PCB8MZ, smart 4K PoE security camera with 5x optical zoom
4K/8MP resolution | Color night vision | Smart event detection | Perimeter protection | AI video search
SKU
RP-PCB8MZ-W
Reolink RP-PCB8MZ
8MP UHD PoE outdoor camera with smart AI-functions.

- 8MP resolution, clear images in 4K; Ultra wide diagonal field of view of 133°;

- With both infrared LEDs and spotlights, the camera offers flexible lighting options. It automatically switches to infrared mode at night for clear black-and-white images in low-light environments. With spotlight on, it delivers full-color night vision. You can choose from three spotlight modes - Always On, Alarm-triggered and Manually off - to suit your security needs and provide effective visual deterrence;
- With 5x optical zoom;

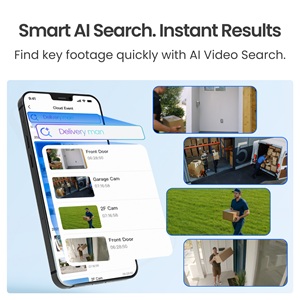

- AI video search: Input descriptive keywords to instantly search specific video clips in local footage. Filter out irrelevant clips and pinpoint the target event in no time;

- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;

- Smart event detection (bèta): Sends instant alerts when objects are forgotten or removed from key areas, ensuring timely action and loss prevention;

- Identifies and differentiates between people, packages, animals, non-motorized and motorized vehicles, improving alert accuracy and reducing false alarms;

- Flexible alarm integration. Seamless alarm linkage without complex control system. With input and output cables, this camera easily integrates with alarm-in devices like sensor and door magnets, as well as alarm-out devices such as speakers and strobe lights;

- Secure storage for every need. Trusted storage options including microSD cards (max 512GB), Reolink NVRs or FTP backup solutions;
- Smooth VMS-system. Remote live viewing, alarm management, device management, account management;
- Two-way communication;
- IP67 rated weatherproof;

| SKU | RP-PCB8MZ-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285031894 |
| Model: RP-PCB8MZ | ||
| Video & Audio | Sensor | 1/2.8" CMOS Sensor |
| Resolution | 3840 x 2160 (8 Megapixel) @30 frames/sec | |
| Lens | f=2.7~13.5mm; Max. F=1.6 | |
| Zoom | 5x optical zoom | |
| Field of view | Horizontal: 108.6~32° Vertical: 56.2~18° Diagonal 133~36.7° |
|
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Up to 30 meter (LED: 4st/4W/850nm) | |
| Color night vision | With spotlights 4pcs LED's/0~4W adjustable/4000K/600lm | |
| Frame rate | Mainstream: 2fps - 30fps (default: 30fps) Substream: 4fps - 15fps (default: 10fps) |
|
| Code rate | Mainstream: 2048Kbps - 9216Kbps (default: 7168Kbps) Substream: 64Kbps - 512Kbps (default: 512Kbps) |
|
| Audio | Two-way audio | |
| Video compression | H.265/H.264 | |
| Power |
PoE | IEEE 802.3af, 48V active |
| DC power | DC 12.0V-2A, <15W | |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Alarm in/out | 1 input (12V/1A), 1 output (12V/500mA) | |
| Audio in/out | Built-in mic & speaker | |
| AI and other features |
AI video search | Yes |
| Person and object detection | Person detection / motorized vehicle detection / non-motorized vehicle detection / animal detection / motion detection / package detection | |
| Smart event detection | Object removal detection (bèta), forgotten object detection (bèta) | |
| Perimeter protection | Line crossing alert, zone-intrusion alert, zone loitering alert | |
| Record mode | Motion-triggered (default), scheduled, 24/7 recording | |
| SmartHome compatible | Google Assistant | |
| AI ISP | Yes | |
| HDR | Yes | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |

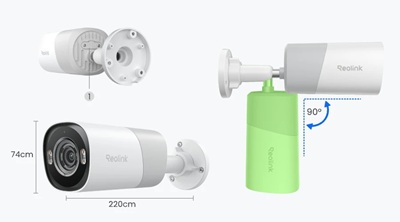

| Dimension | 76 x 74 x 220mm | |
| Weight | 776 gr | |
| In the box | What's in the box | 1x RP-PCB8MZ 1x Ethernet cable 1x Waterproof lid |
| Warranty | Limited warranty | 2 year limited warranty. For support visit Reolink Support - Official Reolink Help Center |
Or download @ Reolink camera
Gallery:
![]() |
![]() |

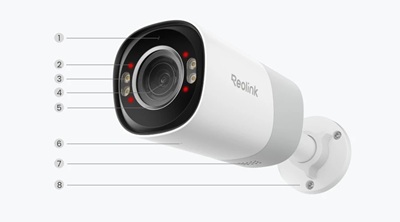

| 1) Daylight sensor; 2) Infrared LED; 3) Spotlight; 4) Lens; 5) Lens hood; 6) Microphone; 7) Speaker; 8) Mount | 1) Micro SD card slot; |
