Reolink RP-PCT12M, smart 12MP UHD PoE camera with spotlights
Turret camera | Color night vision | AI video search | Smart event detection | Perimeter protection
SKU
RP-PCT12M-W

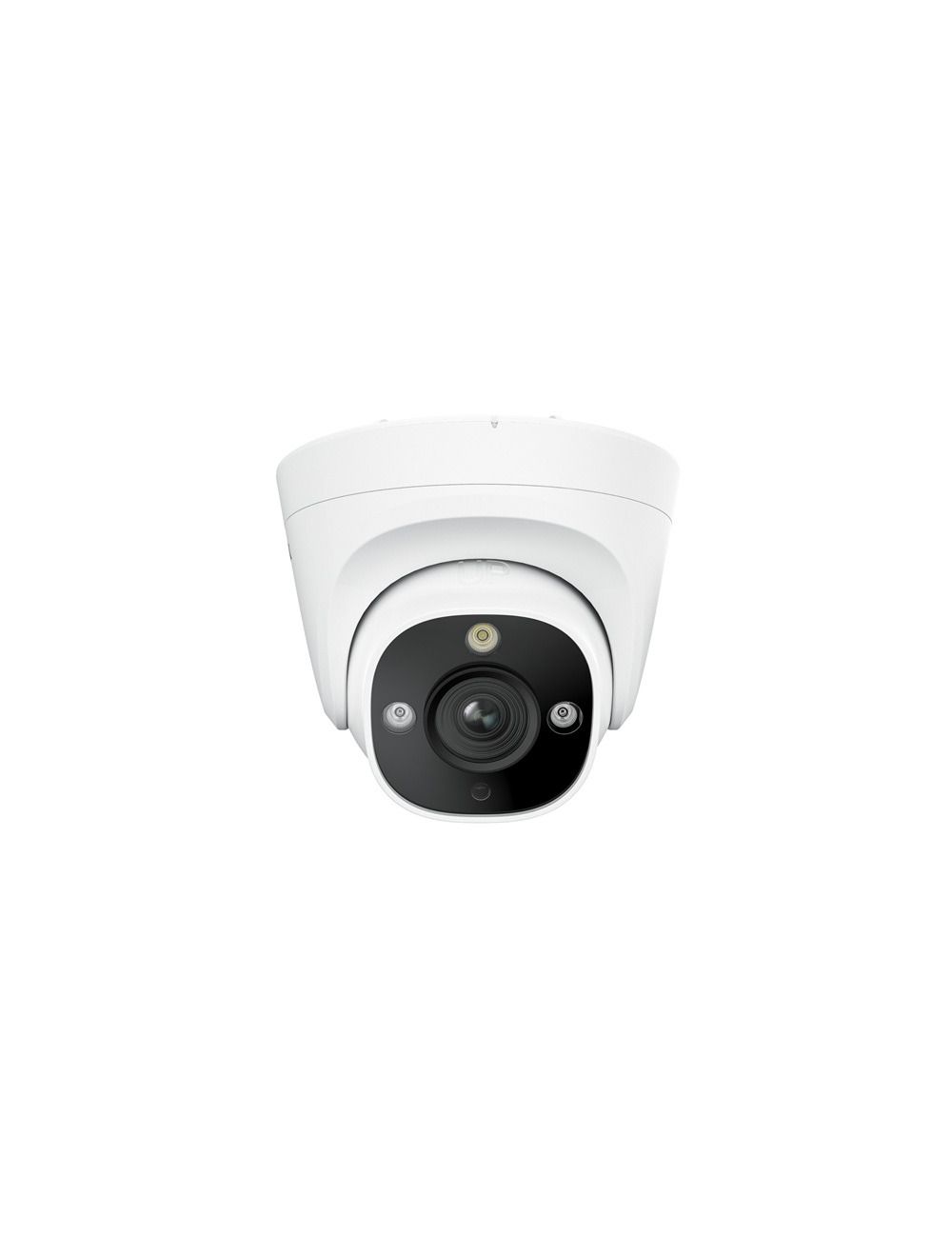

Reolink RP-PCT12M
12MP UHD PoE outdoor turret camera with smart AI functions. Working in tandem, AI ISP technology coupled with the F1.6 large aperture lens ensures exceptional night vision, while spotlights bring full-color clarity to nighttime footage.

- 12MP resolution @ 25fps, capture the smallest details. With a wide field of view of 123°;

- Flexible light modes. Choose from three spotlight modes - Always on, Alarm-triggered and Manually off - to suit different security needs and provide effective visual deterrence;

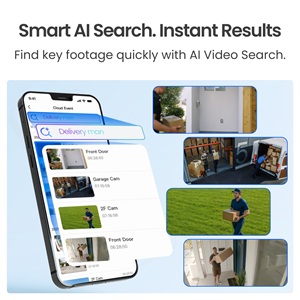

- AI video search: Input descriptive keywords to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time;

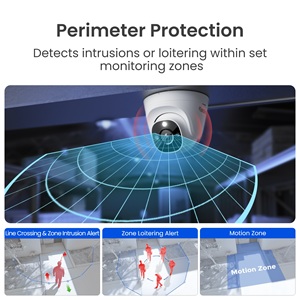

- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;

- Smart event detection (bèta): Sends instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention;
- AI ISP: An AI-powered image enhancement technology designed to improve the brightness and clarity of videos, especially in low-light environments;

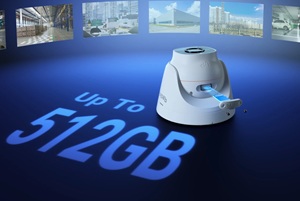

- Secure storage for every need on micro SD cards (max 512GB), Reolink NVR or FTP;

- Smooth VMS system with remote live viewing, alarm management, device management and account management;

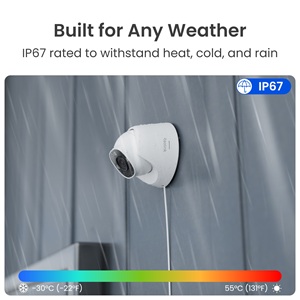

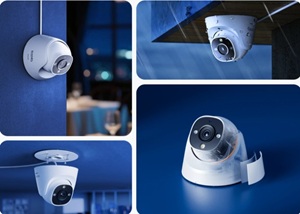

- IP67 rated weatherproof;

- Durable metal housing;
- Two-way communication;
- H.265/H.264 video compression;
- Multiple recording options.

| SKU | RP-PCT12M-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285031887 |
| Model: RP-PCT12M | ||
| Video & Audio | Sensor | 1/2.49" CMOS Sensor |
| Resolution | 4512 x 2512 (12 Megapixel) @25 frames/sec | |
| Lens | f=4mm; F=1.6 | |
| Zoom | N/A | |
| Field of view | Horizontal: 100.4°, Vertical: 50.6°, Diagonal 123° | |
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Tot 30 meter (LED: 2pcs/2.8W/850nm) | |
| Color night vision | 1pc/4.3W/6500K/600lm | |
| Frame rate | Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 20fps (default: 10fps) |
|
| Code rate | Mainstream: 2048Kbps - 12288Kbps (default: 9216Kbps) Substream: 128Kbps - 1228Kbps (default: 1024Kbps) |
|
| Audio | Two-way audio | |
| Video compression | H.265/H.264 | |
| Power |
PoE | IEEE 802.3af, 48V active |
| DC power | DC 12.0V-1A, <12W | |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Storage | MicroSD card slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Audio in/uit | Built-in mic & speaker | |
| AI & other features |
Person & object detection | Person detection/vehicle detection/animal detection/motion detection |
| Smart event detection | Object removal (bèta), forgotten object (bèta) | |
| Perimeter protection | Line crossing alert, zone-intrusion alert, zone loitering alert | |
| Record mode | Motion-triggered (default), scheduled, 24/7 recording | |
| AI video search | Yes | |
| SmartHome compatible | Google Assistant | |
| AI ISP | Yes | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |
| Dimension | ∅117.4 x 103.8mm | |
| Weight | 526 gr | |
| In the box | What's in the box | 1x RP-PCB12M 1x Ethernet cable 1x Quick Start Guide |
| Warranty | Limited warranty | 2 year limited warranty. For support visit Reolink Support - Official Reolink Help Center |
Or download @ Reolink camera
Gallery:
![]() |
![]() |

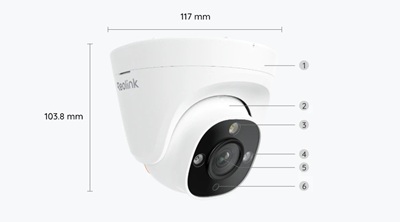

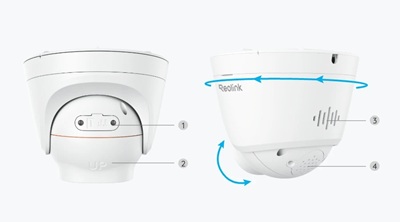

| 1) Mount; 2) Housing; 3) Spotlight; 4) Infrared LEDs; 5) Lens; 6) Daylight sensor | 1) MicroSD card slot; 2) 'Up'-mark; 3) Speaker; 4) Vent |
