Reolink RP-PCT16MD, Dual-lens PoE security camera with 180 degr panoramic view
16MP UHD | 25fps | AI Video search | Dual-lens | Color and IR night vision
SKU
RP-PCT16MD-W
Reolink RP-PCT16MD
16MP UHD Dual-lens PoE outdoor security camera, one camera with many technologies. 16MP UHD clarity, 180° ultra-wide field of view, and Motion Tracking. Protect your property better with a clearer and wider field of view. This camera is an excellent, affordable security camera for shops, yards, garages, and/or warehouses.

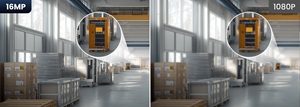

- 16MP UHD image clarity, with two 4K image sensors;

- Motion Track, visualize the motion path of people, vehicles, and animals in a single image;

- 180° panoramic view. This dual-lens camera uses advanced dual-image stitching algorithm to seamlessly stitch two views into a single 180° panoramic image with no blind spots;

- Color night vision. Spotlights can not only deter intruders but also support color night vision. Combined with a large F1.6 aperture, the camera can capture color images in stunning detail, even at night;
- AI video search: Use well-defined keywords to instantly find specific clips in your local recordings. Filter out unimportant clips and instantly locate the target event!

- Perimeter Protection: Receive AI-powered alerts for line crossing, intrusion, or loitering. Precision protection of critical areas;

- Smart Event Detection: Receive instant notifications about forgotten or deleted objects from key areas. You can take action immediately;

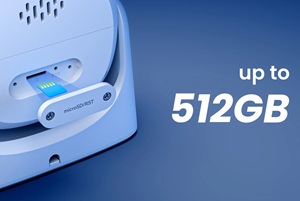

- Secure storage on micro SD card (up to 512GB), on an NVR or FTP;

- Smooth VMS system. Remote live viewing, alarm management, device management, account management, everything is easy to manage;
- IP67 weatherproof, performs in all weather conditions;

- Durable and sturdy metal housing;

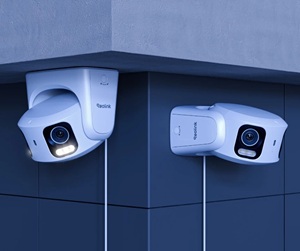

- Flexible installation. Can be mounted to both the ceiling and the wall;

- Two-way communication;
- H.265/H.264 video compression;
- Multiple recording options.

| SKU | RP-PCT16MD-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285031955 |
| Model: RP-PCT16MD | ||
| Video & Audio | Sensor | 1/2.8" CMOS Sensor |
| Resolution | 7680 x 2160 (16 Megapixel) @25 frames/sec | |
| Lens | f=2.8mm; F=1.6, with IR-cut | |
| Zoom | N/A | |
| Field of view | Horizontal: 180°, Vertical: 60° | |
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Up to 30 meter (LED: 3pcs/3W/850nm) | |
| Color noght vision | 3pcs/3.5W/4000K/400lm | |
| Frame rate | Mainstream: 4fps - 25fps (default: 25fps) Substream: 4fps - 20fps (default: 10fps) |
|
| Code rate | Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps) Substream: 256Kbps - 2048Kbps (default: 1024Kbps) |
|
| Audio | Two-way audio | |
| Videocompression | H.265/H.264 | |
| Power |
PoE | IEEE 802.3af, 48V active |
| DC power | DC 12.0V-1A, <12W | |
| Interface | Ethernet port | One 10M/100Mbps RJ45 |
| Storage | MicroSD card slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Audio in/out | Built-in mic and speaker | |
| AI & other features |
Person and object detection | Person detection/vehicle detection/animal detection/motion detection |
| Smart event detection | Object removal detection (bèta), forgotten object detection (bèta) | |
| Perimeter protection | Line crossing alert, Zone intrusion alert, Zone loitering alert | |
| Recording mode | Motion-triggered (default), scheduled, 24/7 recording | |
| AI video search | Yes | |
| SmartHome compatibility | Google Assistant | |
| AI ISP | No | |
| Motion track | Yes | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |
| Dimension | 132 x 131 x 72mm | |
| Weight | 775 gr | |
| In the box | What's in the box | 1x RP-PCT16MD 1x 1m network cable 1x QSG |
| Warranty | Limited warranty | 2 year limited warranty. For support, visit Reolink Support - Official Reolink Help Center |
Or download @ Reolink camera
Gallery:
![]() |
![]() |

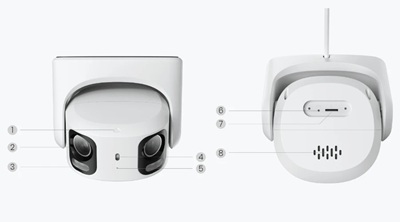

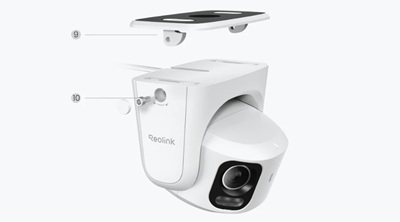

| 1) 'Up' sign; 2) Lens; 3) Infrared/white light; 4) Daylight sensor; 5) Microphone; 6) Reset button; 7) MicroSD card slot; 8) Speaker | 9) Mount; 10) Installation screws |
