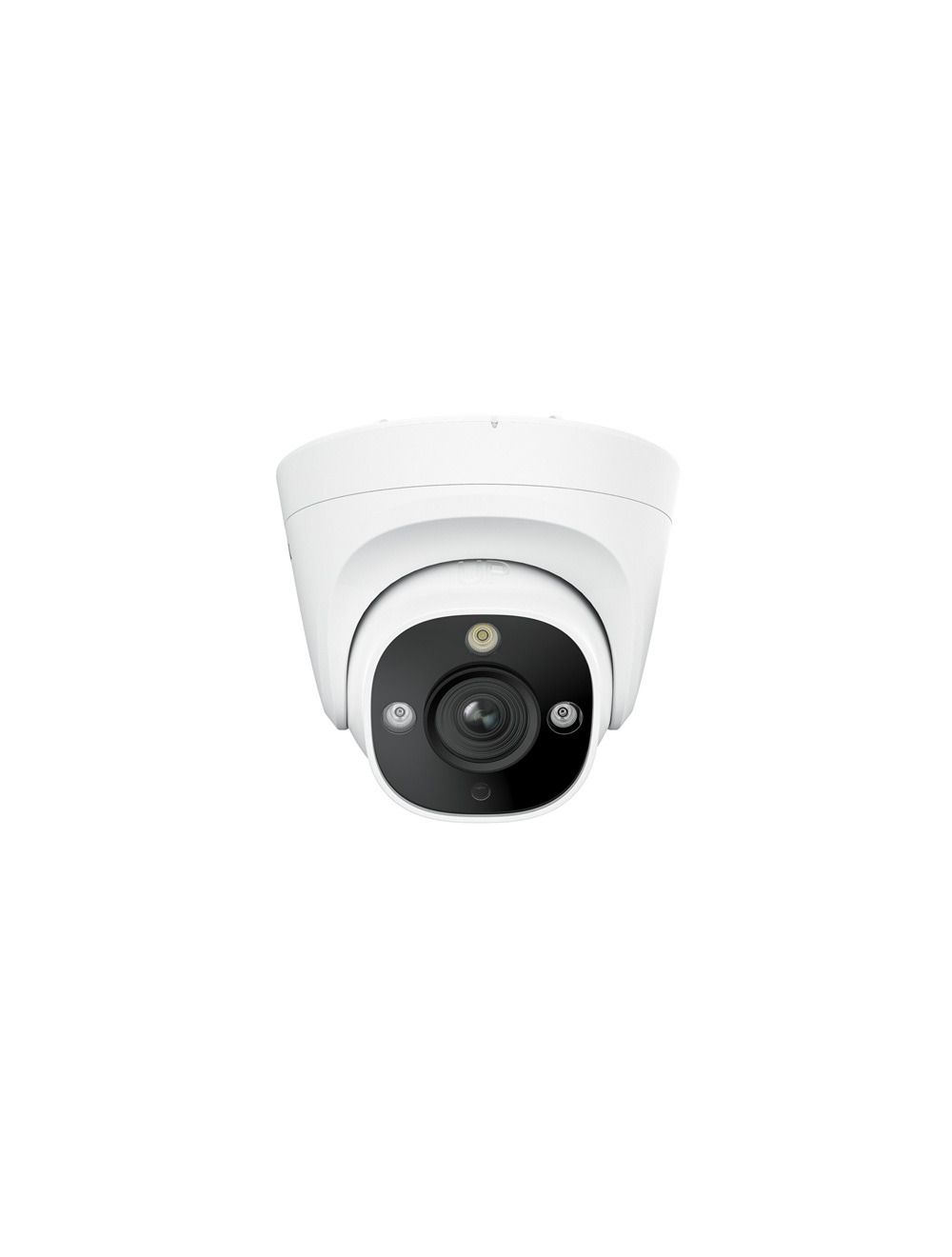

Reolink RP-PCT8M, slimme 4K/8MP PoE security camera with color & infrared night vision
4K UHD resolution | Wide 125° diagonal viewing angle | Smart event detection | Perimeter protection
SKU
RP-PCT8M-W
Related Products
Check items to add to the cart or
Reolink RP-PCT8M
8MP UHD PoE outdoor security camera with smart AI functions.
- Unmatched 4K/8MP clarity, day and night;

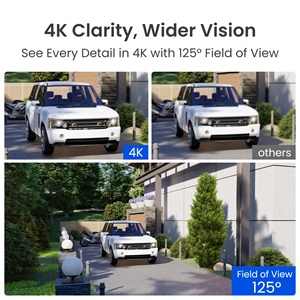

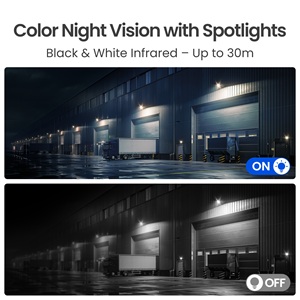

- Stream 4K ultra-high-definition live feeds at 25fps for ultimate sharpness. The built-in spotlight enables vibrant color night vision with three customizable modes - Always on, Alarm triggered and Manually off - for various scenarios. An F1.6 large lens aperture enhances low-light performance with improved color fidelity;

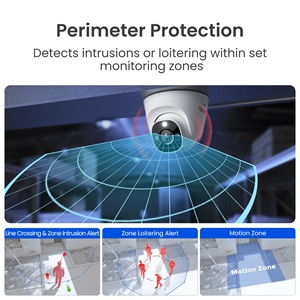

- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;
- Smart event detection (bèta): Sends instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention;

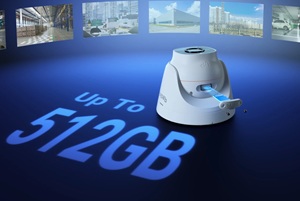

- Secure storage for every need on micro SD cards (max 512GB), Reolink NVR or FTP;
- 125° ultra wide diagonal viewing angle;
- Multiple recording options;
- Smooth VMS system with remote live viewing, alarm management, device management and account management;
- Two-way audio;
- Durable and sturdy metal housing;
- H.265/H.264 video compression;
- IP67 rated weatherproof.

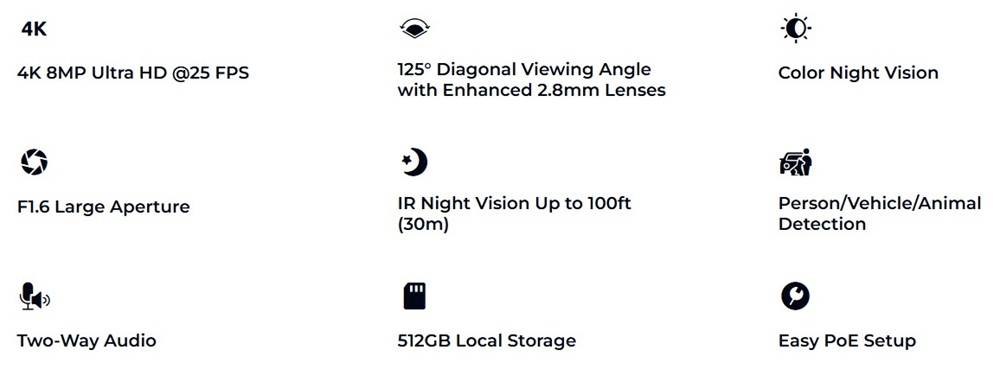

Feature highlights
| SKU | RP-PCT8M-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285031863 |
| Model: RP-PCT8M | ||
| Video & Audio | Sensor | 1/2.7" CMOS Sensor |
| Resolution | 3840 x 2160 (8 Megapixel) @25 frames/sec | |
| Lens | f=2.8mm; F=1.6 | |
| Zoom | N/A | |
| Field of view | Horizontal: 105°, Vertical: 56°, Diagonal 125° | |
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Up to 30 meter (LED: 2pcs/2.8W/850nm) | |
| Color night vision | 1pc/4.3W/6500K/700lm | |
| Frame rate | Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps) |
|
| Code rate | Mainstream: 2048Kbps - 9216Kbps (default: 7168Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|
| Audio | Two-way audio | |
| Video compression | H.265/H.264 | |
| Power |
PoE | IEEE 802.3af, 48V active |
| DC power | DC 12.0V-1A, <12W | |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Storage | MicroSD card slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Audio | Built-in mic & speaker | |
| AI & other features |
Person & object detection | Person detection/vehicle detection/animal detection/motion detection |
| Smart event detection | Object removal detection (bèta), forgotten object detection (bèta) | |
| Perimeter protection | Line crossing alert, zone-intrusion alert, zone loitering alert | |
| Record mode | Motion-triggered (default), scheduled, 24/7 recording | |
| SmartHome compatibility | Google Assistant | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |
| Dimension | ∅117.4 x 103.8mm | |
| eight | 526 gr | |
| In the box | What's in the box | 1x RP-PCB8M 1x Ethernet cable 1x Quick Start Guide |
| Warranty | Limited warranty | 2 year limited warranty. For support visit Reolink Support - Official Reolink Help Center |
Or download @ Reolink camera
Gallery:
 |
 |

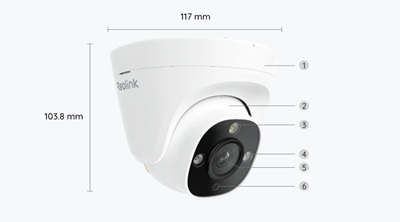

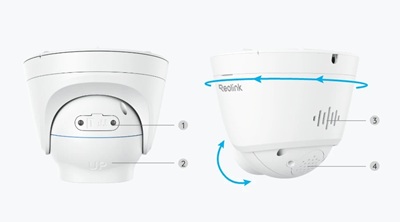

| 1) Mount; 2) Housing; 3) Spotlight; 4) Infrared LEDs; 5) Lens; 6) Daylight sensor | 1) MicroSD card slot; 2) 'Up' mark; 3) Speaker; 4) Vent |
