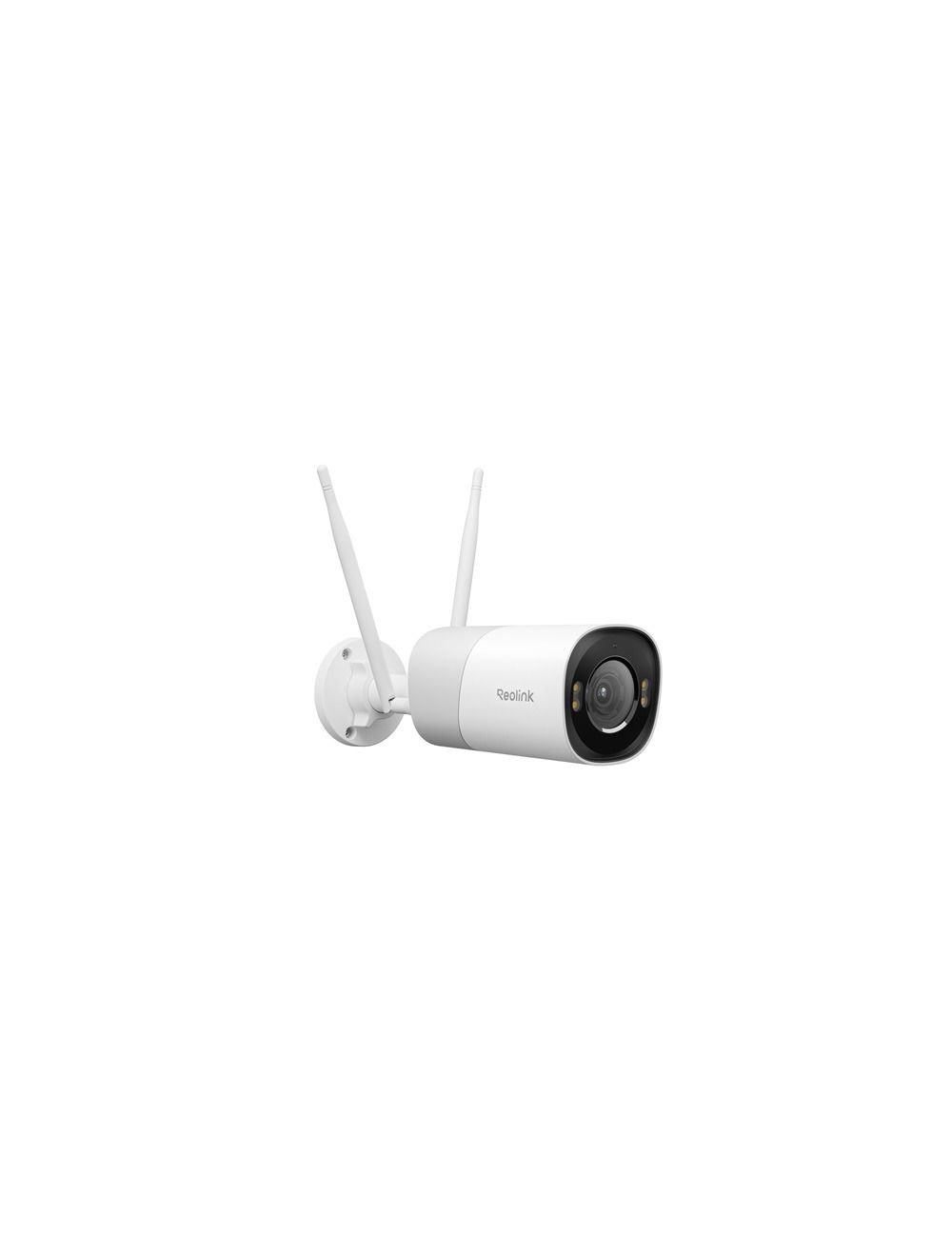

Reolink RP-WCB8MZ, smart 4K Dual-band WiFi security camera with 5x optical zoom and auto-focus
4K/8MP UHD | Color night vision | Smart event detection | Perimeter protection | AI Video search
SKU
RP-WCB8MZ-W
Reolink RP-WCB8MZ
Reolink Professional Series RP-WCB8MZ WiFi security camera boosts home and business security with more powerful AI features than ever. With cutting-edge Perimeter Protection, it sends precise alerts about Line Crossing, Zone Intrusion, and Zone Loitering. The AI Video Search enables quick search in local footage using keywords or brief descriptions. Featuring 4K resolution, 133° viewing angle, and 5× optical zoom, this camera captures more details for greater peace of mind.

- 8MP resolution, clear images in 4K; Ultra wide diagonal field of view of 133°;

- With both infrared LEDs and spotlights, the camera offers flexible lighting options. It automatically switches to infrared mode at night for clear black-and-white images in low-light environments. With spotlight on, it delivers full-color night vision. You can choose from three spotlight modes - Always On, Alarm-triggered and Manually off - to suit your security needs and provide effective visual deterrence;
- With 5x optical zoom and auto-focus;

- Dual-band WiFi 6. Faster data throughput, longer range, and enhanced stability;

- AI video search: Input descriptive keywords to instantly search specific video clips in local footage. Filter out irrelevant clips and pinpoint the target event in no time;

- Perimeter protection: Camera is equipped with AI-driven line-crossing alert, zone intrusion alert and zone lingering alert, delivering precise 24/7 protection for critical areas and enabling response to security threats;

- Smart event detection (bèta): Sends instant alerts when objects are forgotten or removed from key areas, ensuring timely action and loss prevention;

- Identifies and differentiates between people, packages, animals, non-motorized and motorized vehicles, improving alert accuracy and reducing false alarms;

- AI ISP: An AI-based image enhancement technology designed to improve the brightness and clarity of videos, especially in low-light environments;
- Flexible alarm integration. Seamless alarm linkage without complex control system. With input and output cables, this camera easily integrates with alarm-in devices like sensor and door magnets, as well as alarm-out devices such as speakers and strobe lights;

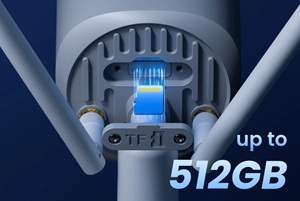

- Secure storage for every need. Trusted storage options including microSD cards (max 512GB), Reolink NVRs or FTP backup solutions;

- Smooth VMS-system. Remote live viewing, alarm management, device management, account management;
- Two-way communication;
- IP67 rated weatherproof.

| SKU | RP-WCB8MZ-W |
|---|---|
| Brand | ReolinkPro |
| EANcode | 6978285032471 |
| Model: RP-WCB8MZ | ||
| Video & Audio | Sensor | 1/2.8" CMOS Sensor |
| Resolution | 3840 x 2160 (8 Megapixel) @30 frames/sec | |
| Lens | f=2.7~13.5mm; Max. F=1.6 | |
| Zoom | 5x optical zoom | |
| Field of view | Horizontal: 108.6~32° Vertical: 56.2~18° Diagonal 133~36.7° |
|
| Day/night | IR-cut filter with auto-switching | |
| Infrared night vision | Up to 30 meter (LED: 4pcs/850nm) | |
| Color night vision | With spotlights 4pcs LEDs/4000K/600lm | |
| Frame rate | Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps) |
|
| Code rate | Mainstream: 2048Kbps - 5120Kbps (default: 4096Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|
| Audio | Two-way audio | |
| Video compression | H.265/H.264 | |
| Power |
DC power | DC 12.0V-2A, <15W |
| WiFi |
Wireless standard | IEEE 802.11 ac/ax/a/b/g/n |
| Operating frequency | 2.4GHz/5GHz | |
| Wireless security | WPA/WPA2/WPA3 | |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max 512GB), Reolink NVR, FTP | |
| Reset button | Yes | |
| Alarm in/out | 1 input (12V/1A), 1 output (12V/500mA) | |
| Audio in/out | Built-in mic & speaker | |
| AI and other features |
AI video search | Yes |
| Person and object detection | Person detection / motorized vehicle detection / non-motorized vehicle detection / animal detection / motion detection / package detection | |
| Smart event detection | Object removal detection (bèta), forgotten object detection (bèta) | |
| Perimeter protection | Line crossing alert, zone-intrusion alert, zone loitering alert | |
| Smart detection setting | Person object size; person sensitivity; person alarm delay; motor vehicle object size; motor vehicle sensitivity; motor vehicle alarm delay; animal object size; animal sensitivity; animal alarm delay; Non-motorized vehicle object size; Non-motorized vehicle sensitivity; non-motorized vehicle alarm delay; Package object size; package sensitivity; package alarm delay; detection zone | |
| Record mode | Motion-triggered (default), scheduled, 24/7 recording | |
| SmartHome compatible | Google Assistant | |
| AI ISP | Yes | |
| HDR | Yes | |
| Time lapse | Yes | |
| Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) |
|
| General | Working environment | Operating temperature -30° ~ 55° C; Operating humidity 10%~90% |
| Weatherproof | IP67 | |
| Dimension | 76 x 74 x 220mm | |
| Weight | 776 gr | |
| In the box | What's in the box | 1x RP-PCB8MZ 1x Ethernet cable 1x Waterproof lid |
| Warranty | Limited warranty | 2 year limited warranty. For support visit Reolink Support - Official Reolink Help Center |
