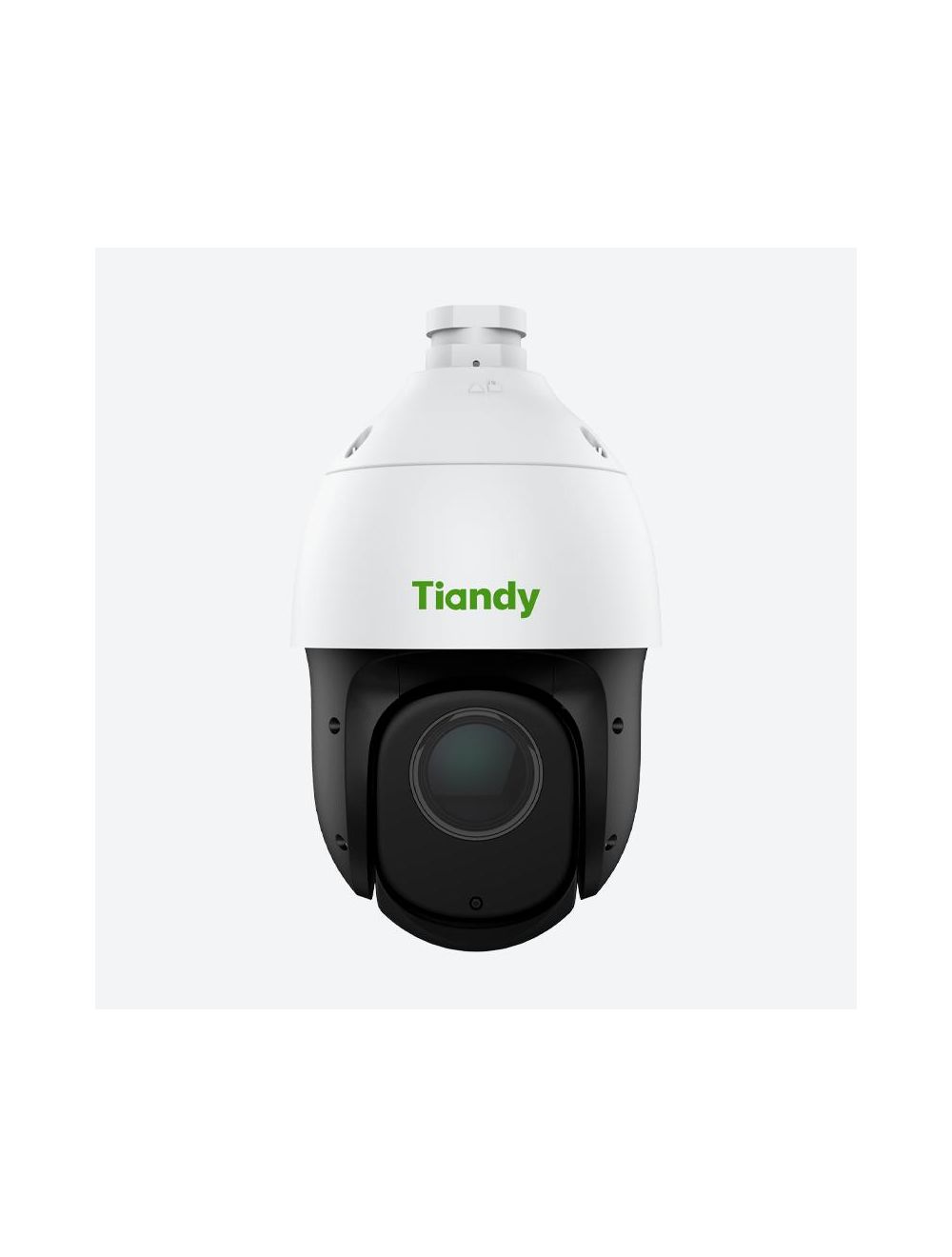

Tiandy TC-H324S Spec:25X/I/E/A/V/V3.0, 2MP IR PTZ PoE-camera with 25x optical zoom
2MP PoE speed dome PTZ camera with 25x optical zoom, IR range 150m
SKU
TC-H324S_25XIEAVV30
Related Products
Check items to add to the cart or
Tiandy TC-H324S Spec:23X/I/E/V3.0
Key features
- Up to 2MP,1920×1080@30fps
- Color:0.001lux@ (F1.5,AGC ON),B/W:0lux with IR
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Optical zoom 25X
- IR range up to 150m
- Support microSD/microSDHC/microSDXC card,up to 512GB
- Support smart surveillance, detect up to 32 faces at the same scene
- Support human/vehicle classification
- Operating conditions -30℃~65℃(-22℉~149℉), ≤95%RH
- DC12V±10%, PoE:IEEE 802.3at
- IP66
| SKU | TC-H324S_25XIEAVV30 |
|---|---|
| Brand | Tiandy |
| EANcode | 6976642042323 |
| Model: TC-H324S Spec:25X/I/E/A/V/V3.0 | |
| Camera | |
| Image sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.5, AGC ON); B/W: 0 Lux with IR |
| Shutter time | 1s-1/100000s |
| Day & Night | IR-cut filter with auto switch |
| Smart IR | Yes |
| WDR | 120dB |
| S/N | > 42dB |
| Lens | |
| Focal length | 4.8mm ~ 120mm |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Zoom speed | <5s |
| Aperture type | Auto (P-Iris) |
| Aperture range | F1.5~3.8 |
| Field of view | Horizontal: 58.5°(w)~2.8° Vertical: 33.2°(w)~1.5° Diagonal: 65.2°(w)~3.3° |
| Focus control | Auto, semi-auto, manual |
| Iris control | Auto |
| Close focus distance | 200mm~1500mm |
| DORI distance | Detect: 1517m Observe: 602m Recognize: 303m Identify: 151m |
| Illuminator | |
| IR LEDs | 6 |
| IR Distance | Up to 150m |
| Wavelength | 850nm |
| IR irradiation angle | Yes |
| Compression standard | |
| Video compression | S+265/H.265/H.264B/H.264M/H.264H/M-JPEG |
| Video bit rate | 32Kbps-16Mbps |
| Audio compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio sampling rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. resolution | 2MP, 1920x1080 @ 30fps |
| Main stream | PAL: 25fps (1920×1080, 1280×720, 704x576, 640x480) NTSC: 30fps (1920×1080, 1280×720, 704x480, 640x480) |
| Sub stream | PAL: 25fps (704×576, 704×288, 352×288, 640×360) NTSC: 30fps (704×480, 704×240, 352×240, 640×360) |
| Third stream | PAL: 25fps (352x288) NTSC: 30fps (352x240) |
| ROI | 7 rectangular 3D fixed focus areas, supporting 1 rectangular dynamic tracking ROI |
| OSD | 16x16/24x24/32x32/48x48/64x64 adaptable size; Vector/Lattice 5 regions (each region can have a maximum of 127 characters, up to 5 lines) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| Noise reduction | 2D/3D |
| White balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Daylight lamp/Filament lamp/Locked white balance |
| Flip | Normal/Horizontal/Mirror/Vertical mirror/Inverted flip |
| Regional exposure | Yes |
| Regional focus | Yes |
| Demist | Yes |
| Defog | Yes |
| Privacy mask | 24 regions (up to 4 blocks in the same time) |
| Feature | |
| General alarm | Motion Detection;Mask Alarm; Alarm Input |
| Exception alarms | Voltage Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network cable disconnected |
| Video analytics | Human/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Heatmap; Loitering; Running; People counting; On Duty Detection; Video Abnormal; Audio Abnormal; |
| Linkage method | Send email;trigger sound;trigger recording;trigger capture;notify surveillance center; alarm output |
| Auto Tracking | Yes |
| Face Mode | Face capture |
| Face capture performance | 60; 19; ≤60m; Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene; Capture rate ≥99% (continuous scene with 10 people or less); Gender 85%, age (±5) 85%, mask 90%, glasses 85%, beard 80% (Less than 10 people in view) |
| Network | |
| ANR | Yes |
| Protocols | RTSP; RTMP; HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP |
| System compatibility | P2P, ONVIF (Profile S/T/G/M), SDK, CGI, Milestone, RTSP, RTMP, HTTP Push |
| Remote connection | ≤7 |
| User/Host | Up to 32 users, 4 user levels |
| Client | Easy7 VMS |
| Mobile client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Pan&Tilt | |
| Pan range | 0~360° |
| Pan speed | Manual speed 0.1°~200°/s Preset speed: 240°/s |
| Tilt range | -16°~90° (default -3°~90°) |
| Tilt speed | Manual speed 0.1°~120°/s Preset speed: 180°/s |
| 3D position | Yes |
| Preset | 500 |
| Cruise | 16, up to 32 presets per cruise |
| Scan | 8 |
| Pattern | 8, each with 600s memory or 1000 orders |
| Scheduled task | Preset, cruise, scan, pattern |
| North point | Yes (manual setting) |
| Power off memory | Yes |
| Interface | |
| Communication interface | 1 RJ45 (10/100 Base-T) |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Reset button | Yes |
| On-board storage | Support microSD/micro SDHC/micro SDXC card, up to 512GB |
| General | |
| Web client language | 19 languages; Simple Chinese/ English/ Traditional Chinese/ Spanish/ Italian/ Korean/ Turkish/ Russian/ Thai/ Polish/ French / Dutch/ Hebrew/ Vietnamese/ Arabic/ German/ Ukrainian/ Portuguese/ Albanian |
| Operating temperature | -30°C~ 65°C |
| Operating humidity | 0-95% RH |
| Storage temperature | -30°C~ 65°C |
| Storage humidity | 10~95% RH |
| Power supply | DC12V±10%; POE: IEEE802.3at |
| Power consumption | 9W (IR OFF), 22W (IR ON) |
| Protection | Surge 4000V; ESD 6000V; IP66 |
| Material | Metal |
| Dimensions | 161 (D) x 276 (H) mm |
| Package dimension | 260x260x465mm |
| Gross weight | 5.1 kg |
| Net weight | 3 kg |
