Reolink W430, 4K UHD Dual-Band WiFi security camera with color night vision
Color night vision, 5x optical zoom, WiFi 6 technology, smart alarm
SKU
W430-W
Reolink W430
- 4K UHD camera, clear visual quality, real-time or playing back recorded footage
- Resolution 3840 x 2160 (8MP)
- 5x optical zoom, field of view 39~123°, enhanced visibility
- WiFi 6: Experience seamless 4K live streaming with blazing-fast speed and uninterrupted connection
- Dual-Band WiFi with 2T2R MIMO antennas; Use 5GHz WiFi for faster speed and a stronger signal or use 2.4GHz to extend the reach of your surveillance network
- Night vision: Motion-activated, black and white or scheduled. In addition to providing clear black-and-white night vision, it goes a step further by offering colorful images and videos through its spotlight. You have the flexibility to configure the spotlight activation based on your preferences, whether it's scheduled activation or triggered by motion detection
- IP67 certified weatherproof, it excels even in the most challenging weather conditions
- Have fun with time lapse (function will be disabled when connected to NVR)
- Smart detection. The camera can smartly distinguish person, vehicle and animal shapes from other objects, and send accurate alerts to you, greatly reducing false alarms. No subscription is required
- Two-way-audio. With the built-in mic and speaker, you can talk with people by the camera side in real time. Say hello to friends or warn off unwelcome visitors
- Double alarm. When something suspicious is detected, the spotlight and siren will be triggered, serving as effective deterrents. You can also manually operate them via Reolink app or Client
- Flexible storage options. W430 supports 24/7 recording, motion-triggered recording, and scheduled recording. You have the freedom to choose where to store your footage, whether it's on a microSD card (not included), a Reolink NVR (optional), or FTP server
- View images via free Reolink app or Client
- Works with Google Assistant
SKU | W430-W |
---|---|
Brand | Reolink |
EANcode | 6975253983124 |
Model: W430 | ||
Video & Audio | Sensor | 1/2.8" CMOS Sensor |
Resolution | 3840 x 2160 (8 Megapixel) @15 frames/sec | |
Lens | f=2.7-13.5mm fixed; F=1.6 | |
Field of View | Horizontal: 100-31°, Vertical: 55-17°, Diagonal: 123-39° | |
Zoom | 5x optical zoom | |
Infrared night vision | Up to 30m. LEDs: 4st/3W/850nm (autoswitching with IR-cut filter) | |
Color night vision | With spotlights: 5pcs/4W/6500K | |
Frame rate | Main stream: 2fps-20fps (default 15fps) Sub stream: 4fps-15fps (default 10fps) |
|
Code rate | Main stream: 1024Kbps-6144Kbps (default 4096Kbps) Sub stream: 64Kbps-512Kbps (default 256Kbps( |
|
Audio | Two-way audio | |
Video format | H.265 | |
Power requirements | Power requirements | DC 12.0V-1A, <12W |
WiFi | Wireless standard | IEEE 802.11a/ac/ax/b/g/n |
Wireless security | WPA/WPA2/WPA3 | |
Operating frequency | 2.4GHz/5GHz | |
Interface | Ethernet | One 10M/100Mbps RJ45 |
Power port | DC power port | |
SD card slot | Supports max 256GB Micro SD card | |
Reset button | √ | |
Audio | Built-in microphone and speaker | |
Software | Network protocol | HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
Browser supported | Edge, Chrome, Firefox, Safari | |
OS supported | PC: Windows, Mac OS; Smartphone: iOS, Android | |
User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) | |
Other features | Recording mode | Motion-triggered recording (default), scheduled, 24/7 |
Smart Alarm | Motion detection, human detection, vehicle detection, animal detection | |
Time lapse | √ | |
Smarthome compatibility | Google Assistant, Reolink NVR | |
General | Working environment | Operating temperature -10° ~ 55° C; Operating humidity 10%~90% |
Waterproof | IP67 | |
Dimension | Φ80 x 72 x 238mm | |
Weight | 838 gr | |
Warranty | Limited warranty | 2-year limited warranty. For support, visit: Reolink Support - Official Reolink Help Center |
Or download @ specs Reolink camera's
Specs:
1. Antenna; 2. Aluminium housing; 3. Bracket; 4. Infrared LEDs; 5. High resolution lens; 6. 5 spotlights

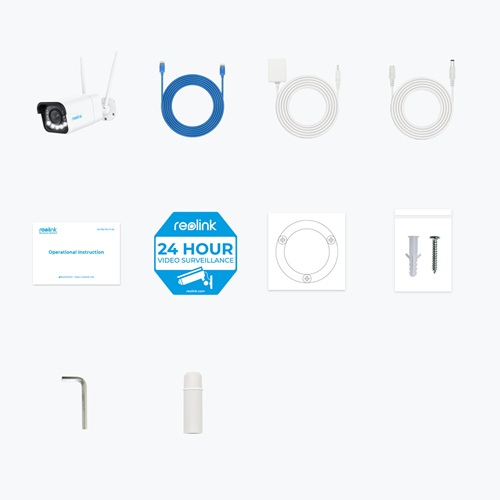

In the box:
