Reolink W520, 6MP Indoor Fisheye WiFi camera with 360 degr panoramic view
Indoor Dual-Band WiFi fisheye-camera with built-in siren, two way audio and smart person detection
SKU
W520-GRAY
Reolink W520-Gray
Experience 360 degrees complete coverage with this fisheye camera W520. With a 6MP panoramic view and IR night vision, it captures every detail from day to night. Versatile display modes provide great flexibility to suit your preferences. Compatible with 2.4GHz and 5 GHz frequencies, it offers a more stable network. You can also engage in real-time communication with two-way audio.
- Panoramic view
Seeing with 180 degrees viewing angles horizontally and vertically, it provides a 360 degrees panoramic field to cover your property! - 2K+ 6MP Super HD

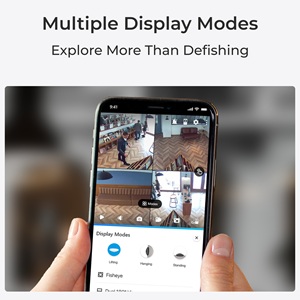

Better than traditional 5MP fisheye cameras, it offers crystal-clear 6MP images/videos - Multiple display modes
Control the view as you like with different display modes - Smart person detection
When a suspicious person is detected, the camera's siren will be triggered, and you will receive an instant notification. The camera helps you keep an eye on your property when you're away - All-day protection with Night vision
The fisheye camera can still see clearly in the dark and help protect your property at night. Make this camera your all-day guard - Dual-band WiFi
Enjoy the reliability of 2.4/5GHz dual-band WiFi for uninterrupted surveillance and smooth live viewing anytime, anywhere - Flexible storage options
Enjoy the flexibility of multiple storage options with support for up to 256GB microSD cards, NVR systems and FTP servers to suit your specific needs and preferences - Remote access
Access your camera remotely and keep an eye on your property anytime, anywhere. Receive instant notifications when something suspicious is detected, find and play back saved videos easily, make time lapse videos, create motion zones etc. - Privacy areas
Protect your privacy with customizable privacy masks, giving you flexibility to decide what areas are masked in your footage - Smarthome
This camera works with Google Assistant* - Two way audio
Talk and listen to the person in front of the camera
* Note: With Google Assistant, you can only see the original fisheye view. The feature is incompatible when camera is connected to NVR
SKU | W520-GRAY |
---|---|
Brand | Reolink |
EANcode | 6975253983827 |
Model: Reolink W520-Gray | ||
Video & Audio | Sensor | 1/2.5" CMOS Sensor |
Video Resolution | Default 2560x2560 (6.5 Megapixel)@20fps | |
Lens | f=1.98, F=2.0 | |
Video format | H.265 | |
Field of view | Horizontal 180°, vertical 180°, diagonal 180° | |
Day and night | IR-cut filter with auto-switching | |
Infrared night vision | Up to 8 meter; LED 3st/850nm | |
Audio | Two way audio | |
Power | DC power | DC 12V/1A, <12W |
Interface |
Power | DC power port |
System | Reset button | |
Ethernet | One 10M/100Mbps; RJ45 | |
Storage | Micro SD card slot (max 256GB) | |
Audio | Built-in mic and speaker | |
WiFi | WiFi standard | IEEE 802.11 a/b/g/n |
Frequency | 2.4 GHz / 5 GHz | |
WiFi security | WPA/WPA2 | |
Software features | Browser supported | Edge, Chrome, Firefox, Safari |
OS supported | PC: Windows, Mac OS; Smartphone: iOS, Android | |
Record mode | Motion record (default), scheduled | |
Network protocol | HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
Frame rate | Mainstream: 2fps - 25 fps (default 20fps) Substream: 4 fps - 15 fps (default 10 fps) |
|
Code rate | Mainstream: 4096Kbps-8192Kbps (default 5120Kbps) Substream: 64Kbps-512Kbps (default 256Kbps) |
|
Smart alarm | Motion detection, human detection | |
Works with | Google Assistant, Reolink NVR | |
User access | 20 users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
Working environment | Temperature | Operating temperature -10° ~ 55° C |
Humidity | Operating humidity 10% ~ 90% | |
Size & weight | Dimension | Ø126x49.2mm |
Weight | 293g | |
Warranty | Limited warranty | 2-year limited warranty. For support visit Reolink Support |
Download: Reolink cameras

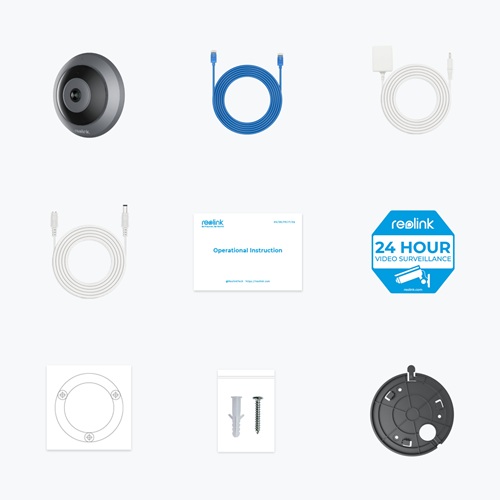

In the box:
