Reolink W740 Elite-series, 4K/8MP Dual-lens WiFi plug-in security camera
Reolink W740 Elite series | WiFi 6 Dual-band | Spotlight color night vision | Smart detection | IP67 | 180degr panorama
SKU
W740-W
Reolink W740
Leaving nothing unnoticed with 4K resolution and 180 degrees blindspot-free coverage. Reolink Elite Series W740 WiFi security camera provides the ultimate solution to outdoor surveillance. With WiFi 6 technology, it ensures smooth, lag-free live streaming in stunning 4K. F1.6 lens aperture draws in more light for brighter images even in low light. Smart event detection elevates your home security to the next level, providing accurate alerts in versatile scenarios. The AI Video Search enables quick search in local footage using keywords or brief descriptions.

- 180-degree camera that covers all. Remarkably wide-angle and superior, Reolink Elite W740 with the dual-lens design captures all details from 180 degree panoramic view, ideal for large open areas. Reduce blind spots, save installation effort, and monitor more with just one camera. Take one glance and stay on top of all the movement in your front yard;
- 4K clarity, vivid night vision. With 8 million pixels, Reolink Elite W740 captures every detail in stunning 4K. Its advanced F1.6 aperture brings in twice the light of F2.0 lenses, ensuring brighter, more vibrant visuals even when the night sets in. See vivid, colorful details day or night;
- Stay well connected with Dual-band WiFi 6. The next-gen WiFi 6 on Reolink Elite W740 delivers faster, more stable, and lag-free connections. With dual-band support, it adapts to your space, 2.4GHz for wider coverage in large homes, 5GHz for faster speeds in open areas. Smooth streaming, seamless security;

- 24/7 protection, storage your way, on microSD card, NVR, Hub or FTP;

- AI-powered detection and alerts, no extra fees. Smartly distinguishes person, vehicle and animal movements from other objects, greatly reducing false alerts;

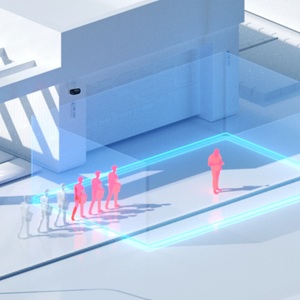

- Draw a line, set a direction, and get notified instantly when someone or something crosses it. Perfect for driveways, yards or restricted areas;

- AI Video search. Input descriptive keywords to search specific video clips in locally saved triggered recordings. Filter out irrelevant clips and pinpoint the target alarm event in no time;
- Not just detect, it takes action. Powerful spotlights and a loud siren activate the moment suspicious activity is detected, deterring intruders while keeping you instantly informed;

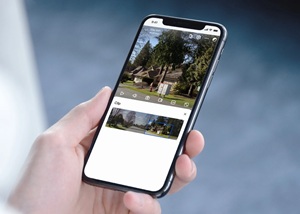

- See the big picture ánd the details. With the 180° ultra-wide view and Clip zoom, you get the best of both worlds - wide coverage and close-up details - all on one screen. Simply tap the Clip button in the Reolink App or Client, adjust the blue frame, and zoom in up to 10× to focus on what matters most;

- Time lapse recording feature;
- With built-in two-way audio, you can greet visitors or warn trespassers in real time, no matter where you are;
- Mount it anywhere, on ceiling or wall, indoors or outdoors;

- Multi-user access. Allow up to 20 users (1 admin & 19 sub-accounts) to access the camera for live viewing and playback, keeping everyone informed;

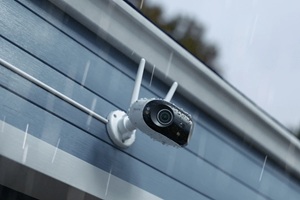

- IP67 certified weatherproof;

- Works with Google Assistant.

| SKU | W740-W |
|---|---|
| Brand | Reolink |
| EANcode | 6978285033331 |
| Model: Reolink W740 | ||
| Video & Audio |
Sensor | 1/2.7" CMOS Sensor |
| Video Resolution | 5120 x 1552 (8 Megapixel) @20 frames/sec | |
| Lens | f=2.8 mm fixed, F=1.6 | |
| Field of view | Horizontal 180°, vertical 59° | |
| Day/night | Auto-switching with IR cut filter | |
| IR Night vision | Up to 30 meter (LED: 6pcs/850nm) | |
| Color night vision | With spotlights: 3 pcs/2W/6500K | |
| Audio | Two-way audio | |
| Frame rate | Mainstream: 2fps-20fps (default 20fps) Substream: 4fps-20fps (default 20fps) |
|
| Code rate | Mainstream: 3072Kbps-8192Kbps (default 5120Kbps) Substream: 256Kbps-2048Kbps (default 1024Kbps) |
|
| Software and other features |
Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Smart alarm | Motion detection, person detection, vehicle detection, animal detection; Virtual fence alert, zone intrusion alert, zone linger alert |
|
| Recording modes | Motion-triggered (default), scheduled, 24/7 | |
| Time lapse | Yes | |
| Protocols | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
| User access | Max 20 users (1 admin account & 19 user accounts); Max 12 simultaneous streams (10 substreams & 2 mainstreams) | |
| SmartHome compatibility | Google Assistant | |
| Interface | Power | DC power port |
| Reset button | Yes | |
| MicroSD card slot | Supports max 512GB microSD card | |
| Audio | Built-in mic and speaker | |
| WiFi | Wireless standard | IEEE 802.11 a/ac/ax/b/g/n |
| Operating frequency | 2.4/5 GHz | |
| Wireless security | WPA/WPA2/WPA3 | |
| Bluetooth | Frequency band | 2402 MHz-2480 MHz |
| Power requirements | DC power | DC 12.0V/2A |
| Working environment | Operating temperature | -10° tot 55° C |
| Operating humidity | 10% ~ 90% | |
| Weatherproof | IP67 | |
| Size & weight | Dimension | 153x128x57 mm |
| Weight | 574 gr | |
| What's in the box | Contents | 1x Reolink Elite W740 1x Mounting template 1x Power adapter 1x Surveillance sticker |
| Warranty | Limited warranty | 2-year limited warranty. For support visit: https://support.reolink.com/hc/en-us/ |
Or download @ specs Reolink cameras
Gallery:

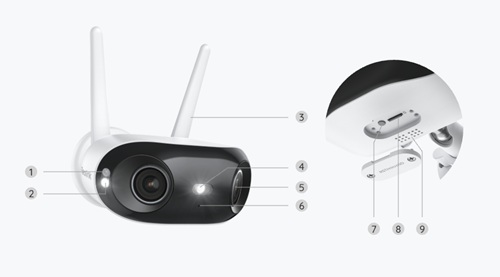

1) IR LED; 2) Spotlight; 3) Antenna; 4) Spotlight; 5) Lens; 6) Microphone; 7) Reset button; 8) MicroSD card slot 9) Speaker

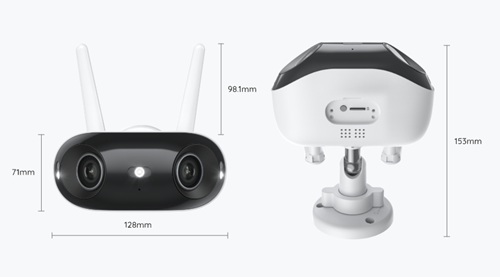

Dimensions:
