Reolink W760-A, 4K Dual-lens PTZ camera with motion tracking and AI Video search

Wide-angle and telephoto lens | Auto-zoom tracking | AI video search | AI ISP

SKU
W760-A-W

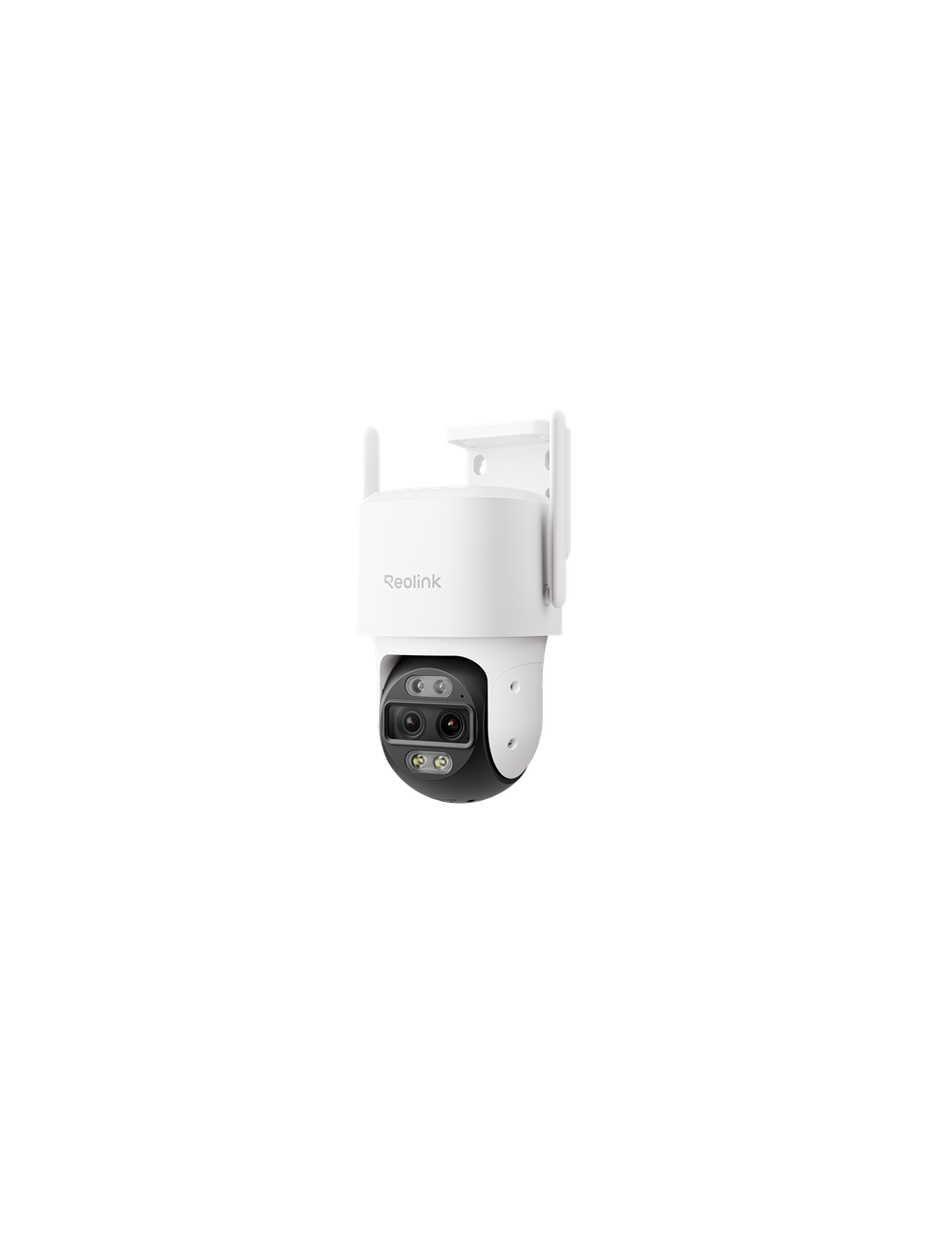

Reolink W760-A

Experience a whole new way of tracking with Reolink TrackMix Series W760-A. With pan, tilt, and 6X hybrid zoom, it can automatically track the detected target and zoom it for more details. With a wide-angle lens and a telephoto lens, it shows both full-view and close-up images of the same event on one screen. Go beyond Full HD and experience never-before-seen details with this 4K camera. The AI Video Search enables quick search in local footage using keywords or brief descriptions.

  • Dual-lens, Dual-tracking, Dual View.
    Dual-lens: The dual-lens camera captures both full-view and close-up images of the same event synchronously, and presents them on the same screen;

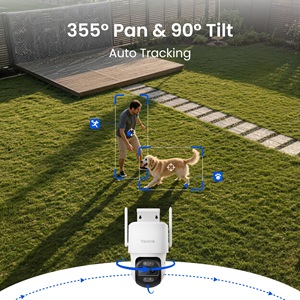

    Dual-tracking: The dual-tracking camera can pan, tilt (up to 355°H, 90°V) to auto track the object and show it in both the panoramic and zoomed views;

    Dual View: Dual view (panoramic and zoomed-in) on one screen;
  • 4K 8MP Ultra HD resolution, captures images with great details. Discover more when zooming in;
  • Two-way, you can listen and talk back via the camera's built-in mic and speaker;
  • Smart detection. Reolink W760-A can distinguish people, vehicles and pets from other objects, providing more accurate alerts;
  • Night vision, 2 spotlights, 2 IR LEDs. When its spotlights are on, this camera provides full-color night vision. Even when there's no light at all, its infrared LEDs still enables high-quality night recording videos;
  • Dual-Band WiFi6. Reolink W760-A supports both 2.4GHz and 5GHz (5.8GHz) frequencies to ensure stronger signal and more smooth live view. Flexible to choose, easy to set up;
  • This camera supports time-lapse video recording;

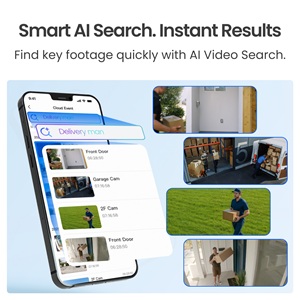

  • AI video search. Use well-defined keywords to instantly find specific clips in your local recordings. Filter out unimportant clips and instantly locate the target event!;
  • AI ISP. An AI-powered image enhancement technology designed to improve the brightness and clarity of videos, especially in low-light environments;
  • De W760-A is IP65 weatherproof. The rugged housing and body make this Reolink smart IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions;
  • Active deterrence. Effective deterrence with siren and spotlight;
  • Multiple Recording Options. his smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings. All the videos can be saved to the micro SD card, Reolink NVR or FTP server;
  • View images wherever and whenever you want in free Reolink app or Client;
  • Works with Google Assistant.

Aanvullende informatie over Reolink.

More Information
SKU W760-A-W
Brand Reolink
EANcode 6978285032556
Model: Reolink W760-A (Trackmix series)
Video & Audio
Sensor 1/2.7" + 1/2.8" CMOS Sensor
Video Resolution 3840x2160 (8 Megapixel) @25 frames/sec
Lens f=2.8mm@F=1.6, f=8mm@F=1.6
Video format H.264, H.265
Field of view Horizontal 105°-38°, vertical 60°-21°
Zoom mode 6x Hybrid zoom
Day/night IR cut filter with auto-switching
IR Night vision Up to 15 meter (LED: 2pcs/850nm)
Color night vision Spotlights: 2 pcs/4W/6000K/450lm/15m
Audio Two-way audio
Frame rate Mainstream: 2 fps-25fps (default 15fps)
Substream: 4 fps-20fps (default 15fps)
Code rate Mainstream: 2048Kbps-5120Kbps
Substream: 128Kbps-1128Kbps
Software & other features
Browser Edge, Chrome, Firefox, Safari
OS PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, , ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User access 20 users (1 admin account & 19 user accounts);
Recording modes Motion-triggered (default), scheduled, 24/7 recording
Time lapse Yes
AI Video search Yes
AI ISP Yes
Smart detection Motion detection; human detection; vehicle detection; animal detection
Smart Home compatibility Google Assistant
Interface Power DC power port
Reset button Yes
Ethernet port One 10M/100Mbps; RJ45
SD card slot Support max 512GB microSD card
Audio Built-in microphone and speaker
Pan&Tilt Pan & Tilt angle (max) Pan: 355°; Tilt: 90°
Pan speed 90/8°-90°/s (speed adjustable)
Tilt speed 60/8°-60°/s (speed adjustable)
Preset points Supports 1 guard point and up to 64 patrol points
Power-off memory function Yes
Auto tracking Yes
WiFi & Bluetooth
Wireless standard IEEE 802.11ac/ax/a/b/g/n
Operating frequency Dual-band WiFi 6, 2.4GHz/5GHz
WiFi security WPA/WPA2/WPA3
Frequency band 2402MHz-2480MHz
Power requirements DC power DC 12.0V - 2A
Working environment Operating temperature -10° tot 55° C
Operating humidity 10% ~ 90%
Weatherproof IP65
Size & weight  Dimension 224.9x132x130.4 mm
Weight 1.09 kg
Warranty Limited warranty 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/
