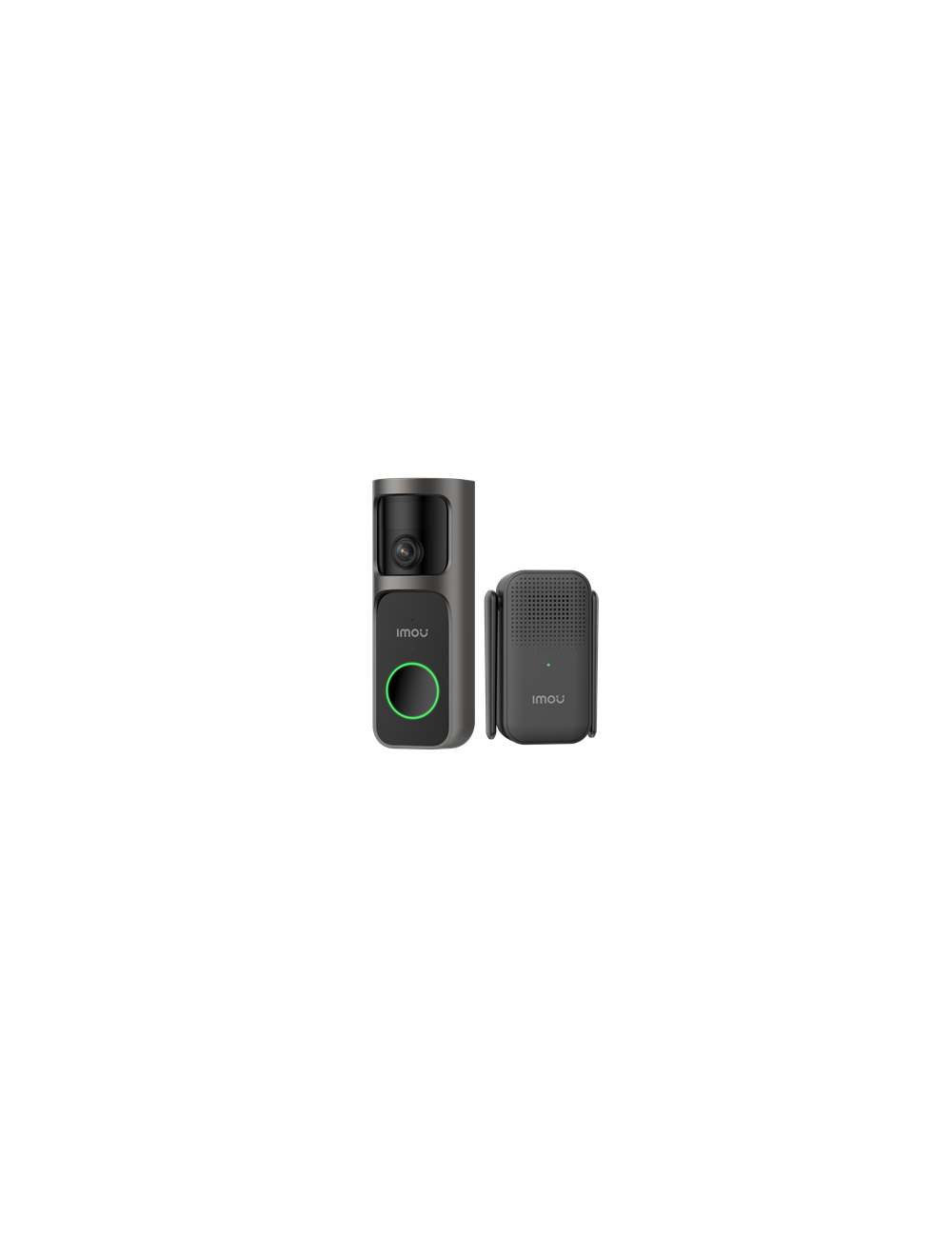

Imou Doorbell 3 Kit, 4MP doorbell kit

Set: 4MP battery charged doorbell with chime (can also be used as WiFi repeater)
SKU
DB-3EP-4M0W-DS3-IMOU

Imou Doorbell 3 kit

 With 4MP QHD live monitoring and Head-to-Toe panoramic view, Doorbell 3 ensures every corner in front of door
completely covered. With 5000mAh rechargeable battery, Doorbell 3 is 100% wire-free, easy to install and waterproof. The kit comes with a chime that works as WiFi extender.

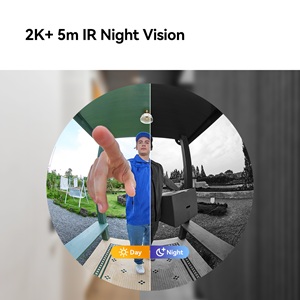

  • With 2K+ resolution for stunning detail and 5m IR night vision, you'll always have a clear view, day or night;

  • The Chime doubles as a WiFi extender, boosting the signal between your Doorbell 3 and router. Enjoy a stable connection for smoother live streaming and instant responses, even from a distance;
  • Built-in rechargeable, longlasting battery (5000mAh). Optional hardwired power supply, always powered;

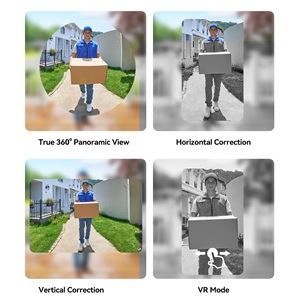

  • Doorbell 3's fisheye lens delivers a full 360° view, ensuring nothing is missed—no blind spots, no hidden risks. Plus, 3 other modes to fit your needs. Horizontal correction, vertical correction and VR-mode;
  • This doorbell is weatherproof, designed for long-term outdoor use, works perfectly in rain, snow and heat;
  • Two-way talk and customizable quick voice reply;

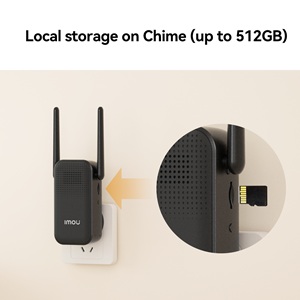

  • The SD card (up to 512GB) can be stored in the indoor chime, protected from theft and tampering;

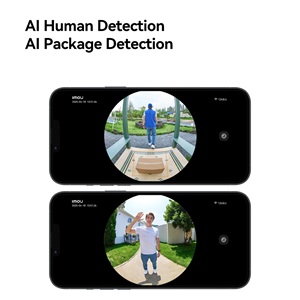

  • This doorbell supports AI human and package detection, with intelligent alerts;
  • Other features:
    - Multiple alarm & ringtones available
    - Supports up to 4 chimes with different ringtones
    - Adjustable bell volume (120dB);
  • Free use of Imou Life app.

Read more about Imou

More Information
SKU DB-3EP-4M0W-DS3-IMOU
Brand Imou
EANcode 6976391032453
Imou Doorbell 3 kit
Model Doorbell
Camera 1/3” Progressive CMOS
4MP (1920 x 1920)
Night vision: 5 m distance
0,98mm Fisheye-lens, 360° panoramic view
Field of view: 180° (H), 180° (V)
5000mAh rechargeable battery
Network WiFi: 2.4GHz, IEEE802.11b/g/n
Chime works as the WiFi extender for the doorbell
Imou App: iOS, Android
Video & Audio Video compression: H.265
Frame rate up to 15 fps
Two-way talk
8x digital zoom
Auxiliary interface Built-in mic & speaker
Power on/off button
Notice management Doorbeel call notification
PIR Motion / AI Human detection
Loitering detection
AI package detection
Auto power saving mode
General Optional hardwired power supply (8~24VAC, ≥ 5VA)
Charging power DC 5V/1A type-c port
Power consumption up to 2.27W
Working environment: -20 °C ~ 50 °C, less than 95% RH
Charging temperature: 0 °C ~ 45 °C
Dimension: 150 x 55 x 50.3 mm
Weight: 220g
CE, Weatherproof
Model Chime
Auxiliary Interface Reset button
MicroSD card slot (up to 512GB)
Built-in speaker
General AC Power supply 100V~240V
Power consumption: up to 3W
Working environment: -10 °C ~ 45 °C, less than 95%RH
Dimension: 95,5 x 65,1 x 30,2 mm
Weight: 79gr
In de doos
In the box
1x Doorbell
1x Surface Mounting Bracket
3x Wire nuts
2x Extension wire
1x USB charging cable
1x Chime
1x Chime plug
1x QSG
1x Screw package
1x Installation position map
1x Jumperkabel
1x Pin

Or download @ Imou cameras
