Reolink NVS8-8MD4, intelligent 4K UHD kit with person and vehicle detection
Reolink PoE-kit consists of 1x NVR NVS8 en 4x camera P334
SKU
NVS8-8MD4
Related Products
Check items to add to the cart or
Reolink NVS8-8MD4
8MP Ultra HD PoE security system
- Power over Ethernet, easy to install
- Person detection, vehicle detection and pet detection
- With 8-channel NVR
- 2TB HDD pre-installed
- Audio Recording
- Video resolution: 3840 x 2160 (8.0 MP)
- Night vision up to 30 meter, 2 IR LEDs, with spotlight
- Comes with 4x 18m network cable
- 4x Reolink P334, smart 4K UHD dome camera
- 1x NVS8
| SKU | NVS8-8MD4 |
|---|---|
| Brand | Reolink |
| EANcode | 6975253983339 |
| NVS8-8MD4 | ||
| Model NVR: Reolink NVS8 | ||
| Video / Audio input | IP video input | PoE IP Camera x 8 |
| Audio input | Cameras with built-in mic | |
| Video output | HDMI | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA | 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Recording | Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video format | H.265/H.264 | |
| Recording modes | Person/vehicle/pet detection, motion-triggered detection, 24/7 recording | |
| Synchronous playback | 1-4 channels (supports only 1-channel palyback if you view it in 8MP or higher resolution) | |
| Storage | Internal HDD | 1 SATA interface (2TB HDD included) |
| Max. capacity | 12TB (Max 6TB per HDD) | |
| External HDD | 1 x eSATA interface voor HDD | |
| External Interfaces | USB ports | 2 x USB 2.0 |
| Audio port | 1 audio out channel, RCA | |
| Video out | 1 HDMI, 1 VGA | |
| Ethernet ports | 1x RJ45, 10/100/1000Mbps self-adaptive for LAN/WAN 8x RJ45, 10/100Mbps self-adaptive PoE ethernet interface for IP cameras |
|
| PoE | Max power per port | 25W |
| Supported standard | IEEE 802.3at | |
| Network | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser supported | Edge, Firefox, Chrome, Safari | |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | |
| Max. users | 20 users (1 admin en 19 gebruikeraccounts); supports up to 12 simultaneous videostreams (10 substreams en 2 mainstreams) | |
| General | Working environment | Temperature: -10℃~+45℃, Humidity: 10%~90% |
| Power supply | DC 48V ~ 53V | |
| Power consumption | <10W (without HDD) | |
| Dimension (mm) | 260(W) x 41(H) x 230(D) | |
| Weight (without HDD) | 1.4 kg | |
| Warranty | Limited warranty | 2-year limited warranty. For support: Reolink Support - Official Reolink Help Center |
| Model camera: Reolink P334 | ||
| Video & Audio | Sensor | 1/2.49" CMOS Sensor |
| Resolution | 3840 x 2160 (8 Megapixel) @25 frames/sec | |
| Lens | f=2.8mm fixed; F=1.6 met IR cut | |
| Field of View | Horizontal: 105°, Vertical: 56° | |
| Day & night | Auto-switching IR-cut filter | |
| Night vision | 30 Meter (LED: 2st/1.8W/850nm) | |
| Spotlight | 1st/4.3W/6500K/700lum | |
| Audio | Built-in microphone & speaker | |
| Video format | H.265 | |
| Power |
PoE | IEEE 802.3af, 48V |
| DC power | DC 12.0V-1A, <12W | |
| Interface |
Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (up to 256GB) | |
| System | Reset button | |
| Power | DC power port | |
| Software |
Frame rate | Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps) |
| Code rate | Main Stream: 2048Kbps -8192Kbps(default: 6144Kbps) Sub Stream: 64Kbps - 512Kbps(default: 256Kbps) |
|
| Network protocol | HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
| Browser supported | Edge, Chrome, Firefox, Safari | |
| OS supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
| Max users | 20 users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
| Record mode | Motion record (default), scheduled record | |
| Smart Alarm | Motion detection/Human detection/Vehicle detection/Pet detection | |
| Werkt met | Google Assistant, Reolink NVR | |
| General | Working environment | Operatin temperature -10° ~ 55° C; Operating humidity 10%~90% |
| Waterproof | IP66 | |
| Dimension | ∅117.4x103.8mm | |
| Weight | 526g | |
| Warranty | limited warranty | 2-year limited warranty. For support: Reolink Support - Official Reolink Help Center |
Or download @ Reolink NVRs

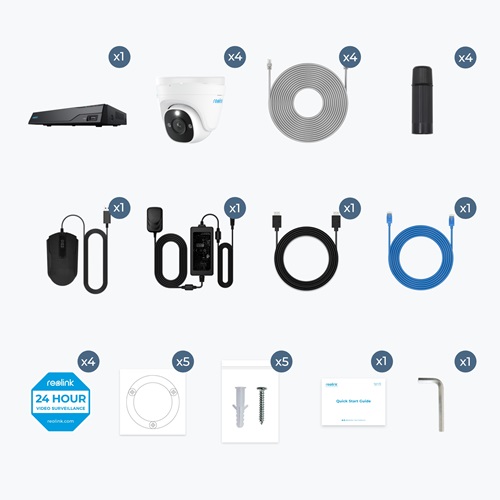

In the box:
