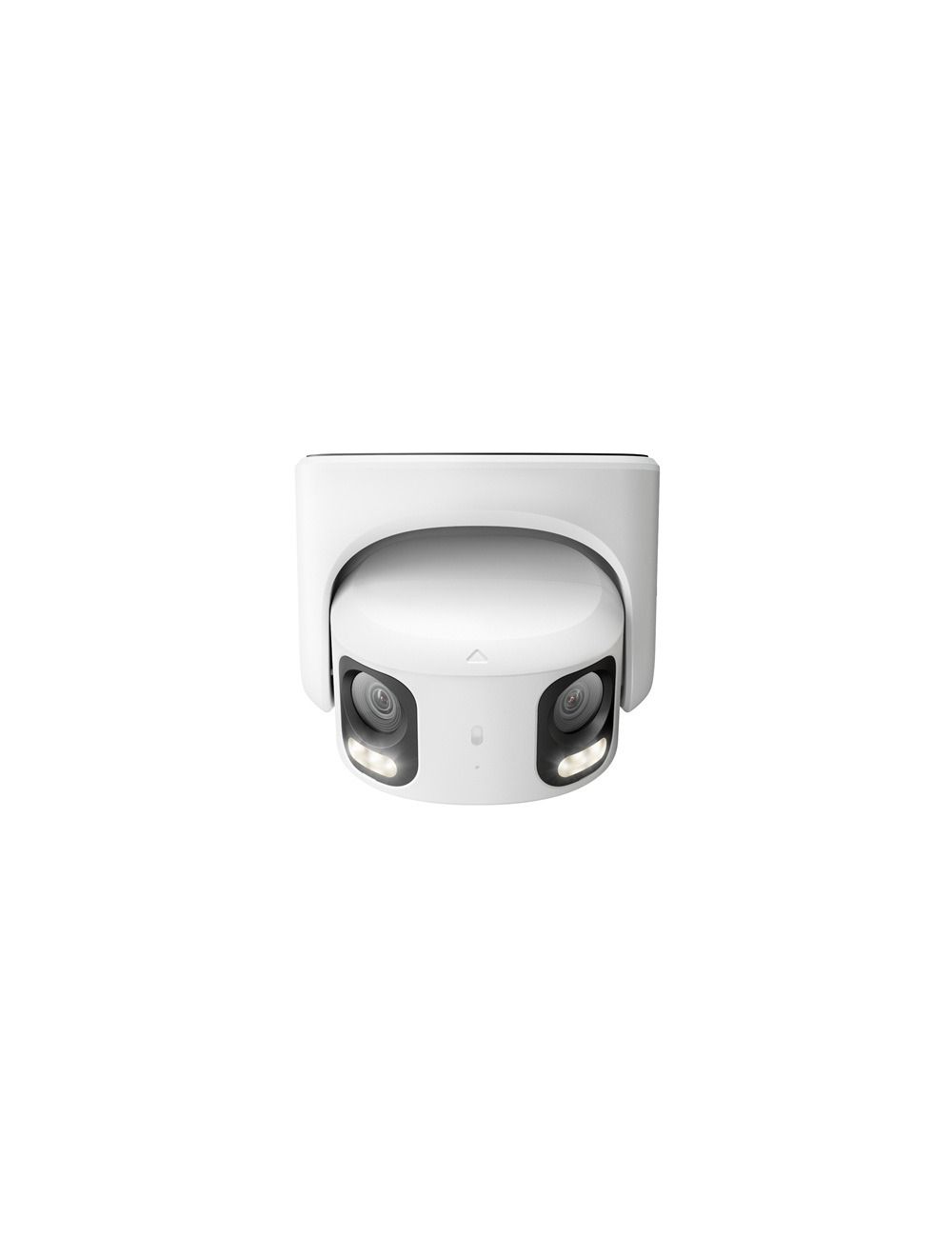

Reolink RP-PCT8MD, smart 4K Dual-lens PoE security camera with 180 degrees panoramic view

4K/8MP UHD | AI Video search | Dual-lens | Color and IR night vision
SKU
RP-PCT8MD-W

Reolink RP-PCT8MD

8MP Dual-lens PoE outdoor security camera, one camera with many technologies. Experience razor-sharp 4K resolution with a 180° panoramic view thanks to the dual lens. It captures wide-angle shots without blind spots. The large F1.6 aperture improves night vision and delivers detailed color images, even in low light.

  • 4K/8MP UHD image clarity; And with 180deg panoramic view. Larger field of view by image stitching technology, making the two single lenses work together;
  • Color night vision. Spotlights can not only deter intruders but also support color night vision. Combined with a large F1.6 aperture, the camera can capture color images in stunning detail, even at night;
  • AI ISP: An AI-based image enhancement technology designed to improve the brightness and clarity of videos, especially in low-light environments;

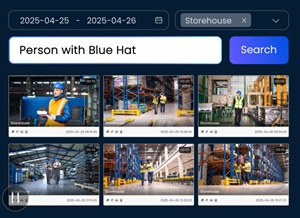

  • AI video search: Use well-defined keywords to instantly find specific clips in your local recordings. Filter out unimportant clips and instantly locate the target event!
  • Perimeter Protection: Receive AI-powered alerts for line crossing, intrusion, or loitering. Precision protection of critical areas;
  • Smart detection of people, vehicles, and animals. You'll also receive instant notifications about forgotten or removed objects from key areas (beta). You can take immediate action;

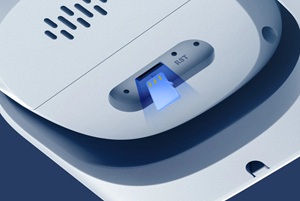

  • Secure storage on micro SD card (up to 512GB), on an NVR or FTP;
  • Smooth VMS system. Remote live viewing, alarm management, device management, account management - everything is easy to manage;
  • IP67 weatherproof, performs in all weather conditions;
  • Durable and sturdy metal housing;
  • Flexible installation. Can be mounted to both the ceiling and the wall;
  • Two-way communication;
  • H.265/H.264 video compression;
  • Multiple recording options.

Read more about Reolink Pro.

More Information
SKU RP-PCT8MD-W
Brand ReolinkPro
EANcode 6978285031948
Model: RP-PCT8MD
Video & Audio Sensor 1/2.8" CMOS Sensor
Resolution 5120 x 1552 (8 Megapixel) @30 frames/sec
Lens f=2.8mm; F=1.6, with IR-cut
Zoom N/A
Field of view Horizontal: 180°, Vertical: 60°
Day/night IR-cut filter with auto-switching
Infrared night vision Up to 30 meter (LED: 3pcs/3W/850nm)
Color noght vision 3pcs/3.5W/4000K/400lm
Frame rate Mainstream: 2fps - 30fps (default: 30fps)
Substream: 4fps - 20fps (default: 20fps)
Code rate Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)
Substream: 256Kbps - 2048Kbps (default: 1024Kbps)
Audio Two-way audio
Videocompression H.265/H.264
Power
PoE IEEE 802.3af, 48V active
DC power DC 12.0V-2A, <12W
Interface Ethernet port One 10M/100Mbps RJ45
Storage MicroSD card slot (max 512GB), Reolink NVR, FTP
Reset button Yes
Audio in/out Built-in mic and speaker
AI & other features
Person and object detection Person detection/vehicle detection/animal detection/motion detection
Smart event detection Object removal detection (bèta), forgotten object detection (bèta)
Perimeter protection Line crossing alert, Zone intrusion alert, Zone loitering alert
Smart detection setting Person object size; person sensitivity; person alarm delay; vehicle object size; vehicle sensitivity; vehicle alarm delay; animal objext size; animal sensitivity; animal alarm delay; detection zone
Record mode Motion-triggered (default), scheduled, 24/7 recording
AI video search Yes
SmartHome compatibility Google Assistant
AI ISP Yes
Time lapse Yes
Software Network protocol HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF
Browser supported Edge, Chrome, Firefox, Safari
OS supported PC: Windows, Mac OS;  Smart Phone: iOS, Android
User access Max 20 users (1 admin account & 19 user accounts);
Max 12 simultaneous streams (10 substreams & 2 mainstreams
General Working environment Operating temperature -30° ~ 55° C;
Operating humidity 10%~90%
Weatherproof IP67
Dimension 132 x 131 x 72mm
Weight 775 gr
In the box What's in the box 1x RP-PCT8MD
1x ethernet cable
1x waterproof lid
1x pack of screws
1x wrench
1x QSG
Warranty Limited warranty 2 year limited warranty. For support, visit Reolink Support - Official Reolink Help Center

Or download @ Reolink camera

Gallery:

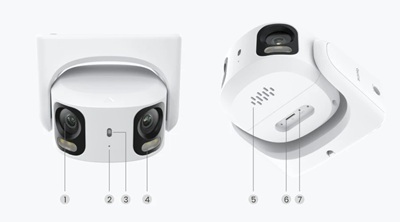

 1) Lens; 2) Microphone; 3) Daylight sensor; 4) Spotlight & IR LED; 5) Speaker; 6) MicroSD card slot; 7) Reset button  9) Mount; 10) Installation screws
