Reolink RLA-PS1E, 5-port Gigabit PoE switch with 65W power budget
4 PoE+ ports | 1 Gigabit ethernet-uplink port | up to 30W per PoE port
SKU
RLA-PS1E
Related Products
Check items to add to the cart or
RLA-PS1E PoE-switch
Reolink RLA-PS1E provides a reliable PoE solution featuring 4 Gigabit PoE+ ports (10/100/1000Mbps) and 1 Gigabit Ethernet uplink ports (10/100/1000Mbps). Compliant with IEEE802.3af/at standard, it can deliver up to 30W for each PoE port and has a total power budget of 65W for up to 4 PoE devices.
Features

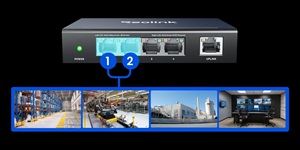

- Extend mode. With Extend Mode enabled, the transmission speeds of Port 1 and 2 will be limited to 10Mbps, extending PoE distance to 820ft (250m) *. Simplify long-distance cabling for large spaces.
* Note: Standard Cat5e cable is required. - Recovery mode. Automatically detects and reboots offline or unresponsive PoE devices, ensuring stable PoE connection and eliminating the hassles of manual resets.

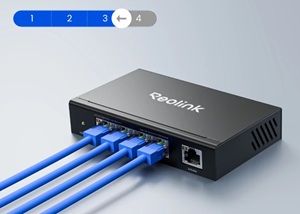

- Power management. By monitoring power usage of connected devices,this PoE switch safeguards crucial ports and prevents power overloads. Once the total consumption exceeds 65W, it will power down sequentially from Port 4 to Port 1 until it drops below the switch's threshold.
- Plug&Play. Working perfectly with your PoE cameras, it transfers both data and electric power through only one Ethernet cable. You can connect it directly to your NVR:
Or to the same LAN as your cameras:

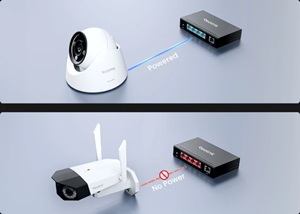

Easy to set up, even for beginners.- Auto detection of adaptive devices. The RLA-PS1E automatically identifies whether the connected device supports PoE and requires power, ensuring non-PoE is not powered to prevent potential damage.

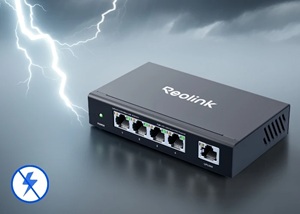

- 4KV Surge protection. With professional lightning protection on both ports and power supply, this PoE switch effectively blocks sudden spikes in voltage, avoiding damage to connected devices.

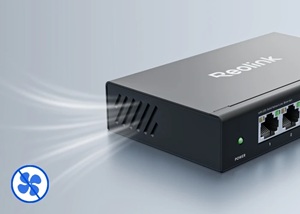

- Noiseless performance. With fanless design, this PoE switch operates without making any noises, ensuring a quiet environment at all times.
| SKU | RLA-PS1E |
|---|---|
| Brand | Reolink |
| EANcode | 6978285032303 |
| Model: Reolink RLA-PS1E | ||
| General | PoE port | 4x 10/100/1000Mbps |
| Uplink port | 1x 10/100/1000Mbps | |
| Power voltage | Input voltage: AC 100-240V Power supply: 52V 1.25A 65W |
|
| PoE protocol | IEEE 802.3af/IEEE802.3at | |
| Max power per port | 30W | |
| Working environment |
Temperature | Operating temperature -10° ~ +45°C |
| Humidity | Operating humidity 10% ~ 90% (non-condensing) | |
| Size and weight | Dimension | 125.5 x 76.8 x 25.5 mm |
| Weight | 234g | |
| Warranty | Limited warranty | 2-year limited warranty. For support, visit: Reolink Support - Official Reolink Help Center |
| In the box | 1x RLA-PS1E (PoE-switch) 1x 65W power adapter 1x setup-guide |
|
Gallery:

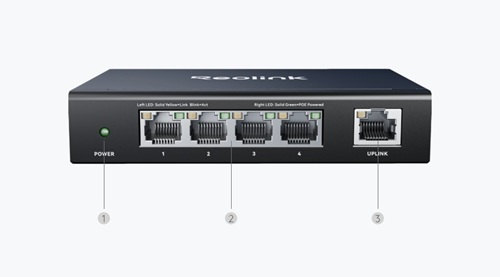

1) Power LED; 2) PoE+ ports; 3) Gigabit Ethernet uplink port

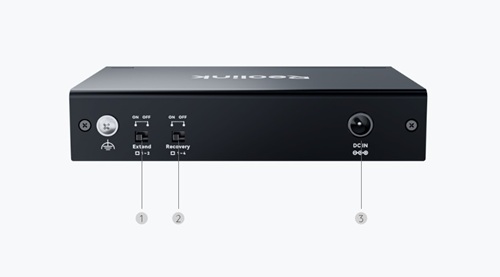

1) Extend switch; 2) Recovery switch; 3) DC port
